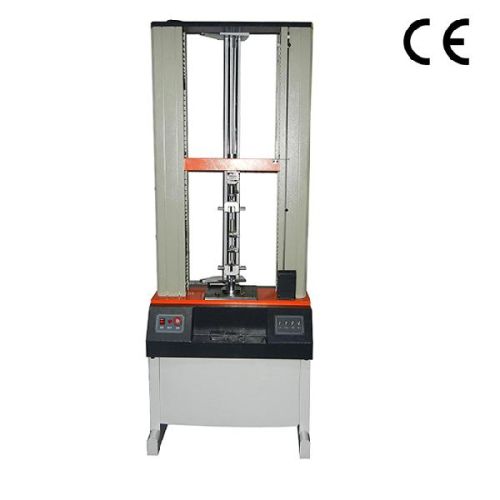

RT-204B Computer Servo Universal Material Testing Machine

Technical parameter:
Model RT-204B
Max load 5KN, 1 Ton, 2 Ton
Accurate grade 1 % 0.5 %
Effective measuring range 0.2%~100%(1grade)0.4%~100%(0.5 grade)
Measuring accuracy Display the value ±1%Display the value±0.5%
Tester resolution Max load 1200000, regardless of inside and outside, constant the resolution
Load sensor Basic configuration�sensor(max load): one
Extended configuration: can add more sensors
Effective testing width 390mm(can be widened according to customer�s requirement )
Effective Tensile stroke 800mm;1000mm;1200mm,(can be increased the height according to customer�s requirement)
Range of testing speed 0.001~200mmmin ; 500mmmin (1000mmmin is option)
Accuracy of displacement measurement Tolerance: ±0.5% tolerance: ±0.2%
Deformation of measured system(according to the requirements) Min span :10mm, Max range of deformation �800mm
Extended deformation �Min span: 25mm�50mm�100mm, �range of deformation �5mm�10mm�25mm
Accuracy of measured deformation Tolerance :±0.5� �according to requirement of customer to choose the larger or small deformation�
safety Electronic-limit protection
Testing platform moving device Fast slow two speeds to control�can jog
Return back Manual or automatic operation�After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10��automatic protection
fixture A set of tensile fixture
Machine size 80x55x220cm(length*width*height)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply 220V�50HZ�
Power 0�4KW�depending on different demand of force, using different motor�
Machine weight �about�250 Kg
Units Kg,N,LB, TON can be exchanged.
