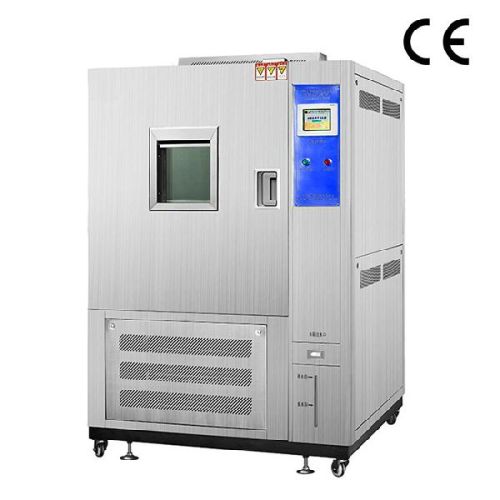

RT-301A Simulate Environmental Testing Chamber, Brand Name : Right

Detailed parameters:
Inside size WxHxD (cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside size WxHxD (cm) 90x136x94 100x146x104 100x161x117 110x171x137 130x181x137 150x186x137 150x186x157
Temperature range -70�~+100�(150�)
(A:+25� B:0� C:-20� D:-40� E:-50� F:-60� G:-70�)
Humidity range 20%~98%R.H.(10%-98%R.H5%~98%R.H is the specific codition�
Accuracy uniformly ±0.1��±0.1%R.H. ±1.0��±3.0%R.H.
Accuracy volatility ±1.0��±2.0%R.H. ±0.5��±2.0%R.H.
Heating cooling time About 4.0�min�about 1.0�min�5~10�mm is the specific condition�
Inside material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled single-stage compressor(-20�) �wind, water cooledtwo-stage compressor(-40�~-70�)
protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
accessories recorder(purchase)�view window�50mm testing hole�PL lamp�clapboard�Dry and wet gauze ball
controller TEMI300 digital controller from South Korea
compressor France �Taikang�
power 1phase 220VAC±10% 5060Hz & 3phase 380VAC±10% 5060Hz
Equipment summary:
The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
