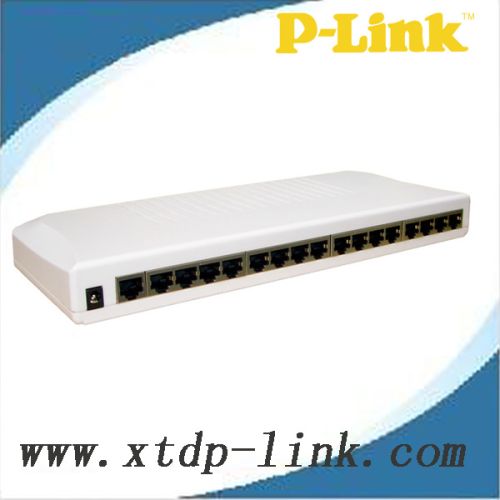

RTL 16 Port 10/100M ETHERNET SWITCH

MOQ1 Piece(s)
BrandP-Link
Packaging Typemany choices
Country of OriginShenzhen,China
Number Of FlowerRTL 16 Port 10/100M ETHERNET SWITCH
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shenzhen Xintengda Communication Technology Co., Ltd.

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerRTL 16 Port 10/100M ETHERNET SWITCH
Packaging Typemany choices
BrandP-Link
Country of OriginShenzhen,China
size many choices
Model Number PL-ES1016D-C1

Features:
1、16 10/100Mbps ports connect to the workstation and support Auto MDI/MDIX
2、Complies with IEEE802.3, IEEE802.3u Ethernet Standards
3、Supports NWAY auto-negotiation function, auto detect transmission rate and duplex models, UPnP and automatically chooses the best network connectivity mode
4、Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control
5、Supports non-blocking wire speed transfer
6、Adopts store-and-forward mode,
7、supports MAC address auto learning/aging
Specification:
Standard IEEE 802.3、IEEE 802.3u、
Port 16 10/100/1000M Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
Network Media 10Base-T：Cat. 3 or above UTP，
100Base-TX：Cat.5 UTP
100Base-FX：MMF or SMF
Filter and transmission rate 10Mbps：14880pps 100Mbps：148800pps
LED Indicator Each port Link/Act, 10M/100M,
Others Power
Dimension
(L x W x H) 285x109x30.5 mm
Environment Operation Temperature：0ºC-40ºC； Store Temperature：-40ºC-70ºC
Operation Humidity：10%-90% RH Non-condensing；
Store Humidity：5%-90% RH Non-condensing
Power 110-260V/AC, 50/60Hz
Package:
MEAS: 60X59.5X42 cm
N.W.:30KG
G.W.:31KG
Q'TY: 50PCS/carton
