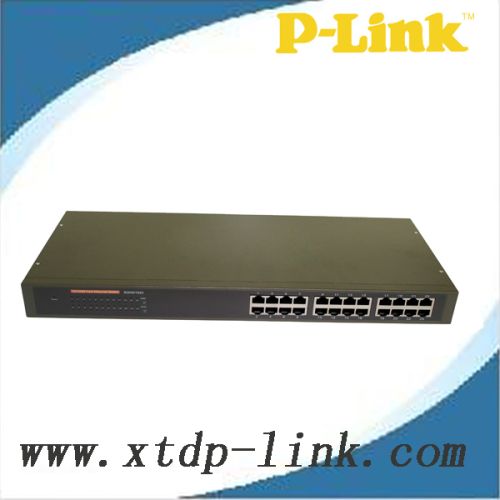

RTL 24 Port 10/100M ETHERNET SWITCH

MOQ1 Piece(s)
BrandP-Link
Packaging Typemany choices
Number Of FlowerRTL 24 Port 10/100M ethernet switch
Country of OriginShenzhen,China
Model Number PL-ES1024R-A1
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shenzhen Xintengda Communication Technology Co., Ltd.

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerRTL 24 Port 10/100M ethernet switch
Packaging Typemany choices
BrandP-Link
Country of OriginShenzhen,China
Model Number PL-ES1024R-A1

Features:
 Fully compliant with IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
 24 10/100Mbps Auto-negotiation Ethernet Ports
 All ports support Full/half duplex transfer mode for 10Mbps/100Mbps
 Supports Auto-MDI/MDIX function
 LED indicators for monitoring power, link, activity, 100Mbps
 Supports MAC address auto-learning and auto-aging
 Store and forward Switching scheme
 Standard 19-inch rack-mountable steel case
 Internal universal power supply
Specification:
Standard IEEE 802.3、IEEE 802.3u、IEEE 802.3ab
Port 24 10/100M Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
Network Media 10Base-T：Cat. 3 or above UTP
100Base-TX：Cat.5 UTP
Filter and transmission rate 10Mbps：14880pps 100Mbps：148800pps
LED Indicator Each port Link/Act, 10M/100M,
Others Power
Dimension(L x W x H) 440 x 208x 44 mm
Environment Operation Temperature：0ºC-40ºC； Store Temperature：-40ºC-70ºC
Operation Humidity：10%-90% RH Non-condensing；
Store Humidity：5%-90% RH Non-condensing
Power Input: 110-260V/AC, 50/60Hz
Package:
MEAS: 59X32X50 cm
N.W.:
G.W.:
Q'TY: 5PCS/carton
