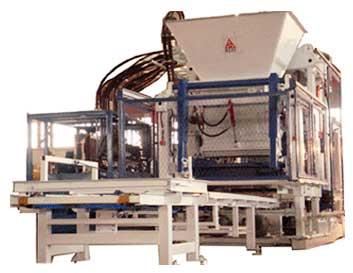

RTQT15 Concrete Hollow Block Machine

Capacity(based on double shift of 300 days and standard block of 390x190x190mm)

• RTQT£­15 15 pieces/pallet
• Pieces/Hour: 3600pieces
• Theoretic Capacity / year: 250000 cubic meters

Main Features:

• High thickness and rectangle steel frame, four guidance column, extended length of sleeves solidity structure and prolonged life.
• Absolutely synchronous system for mould moving up and down.
• Driven shaker grate with composite move (patented).
• Twin shaft high frequency compacting system with variable frequency and amplitude (patented).
• The vibrating system and body are separated by a high effect absorbing-vibrating system, so it is very convenient.
• Moulds can be changed randomly, and have a face concrete device. This device can produce products with face, various kinds, like standard blocks, porous block, pavers, and kerbstones.
• Integrated hydraulic drive unit with oil cooling, heating device and quick compensation system.
• Facing concrete device (2nd feeding device) as option.
• Hydraulic system adopts imported hydraulic components from Taiwan and Japan. It is an integrated hydraulic station which keeps the oil temperature automatically adjusted, and this can ensure equipment running a long time.
• PLC control system has friend interface, data input and output, diagram display.
• PLC system adopts Siemens of Germany and other electronic components are from famous company in the world. The system runs reliable and divided into three kinds: completely automatic, semi-automatic & manual. The running parameters can be set up and changed control panel. The system can record production and operation data.

Main Technical Parameter:

• Pieces/Pallet: 15 pieces(standard blocks)/pallet
• Height of product: 60-350mm
• Pallet size: 1,400 x 1,150 x 16mm (steel)
• Operation cycle: 15-25s (depending on the types of products)
• Cubage of base aggregate hopper: 1500 L
• Driving motor on vibrating table: 4x7.5Kw
• Vibrating Motor on Up mould: 2x1.1Kw
• Power of hydraulic station: 45Kwv
• Working pressure of Hydraulic station: 16Mpa
• Max oscillating force: 200Kn
• Dimension of machine: 6800x2500x3100(3900)mm
• Machine power: 80kW
