RTR Machine Digital Image Unit Flat Panel

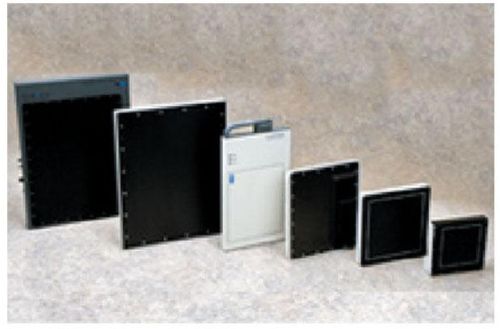

CP Series Digital Image Unit Flat Panel for RTR machine -X Ray Flat-panel Detector(X Ray Digital Image Unit) Object Inspection Image Producer Provides a total digital imaging solution for conventional NDT. it is based on amorphous silicon TFTs, generating high-resolution corrected radiography images within 1.4seconds, immediately available for further processing at system level. Model 0822 1313DX 2520DX 2530HE pixel area 204.8x204.8mm 130x130mm 19.5x24.4mm 249x302mm matrix pixel 1024x1024(1x1) 1024x1024(1x1) 1536x1920(1x1) 1024x1024(1x1) Pixel pitch 200 127 127 139 screen csl/Gd2o2S:Tb DRZ+.Csl DRZ+,Csl DRZ+,Csl energy range 20kvp-15mev 40kvp-225kvp 40kvp-320kvp 20kvp-16mev A/D conversion 16bits 16bits 16bits 16bits frame rate 25fps 1x1 30fps 1x1 12.5fps 1x1 9fps 1x1 50fps 2x2 60fps 2x2 30fps 2x2 30fps 2x2 Operatring temperature 10-35 10-45 10-35 -10-40 Storage temperature -20-70 -20-70 -20-70 -15-50 Operating humidity 10-90% 10-90% 10-90% 10-95% Weight 10.9kg 2.1kg 2.51kg 13kg Software Chinese/English Chinese/English Chinese/English Chinese/English Pic of unit
