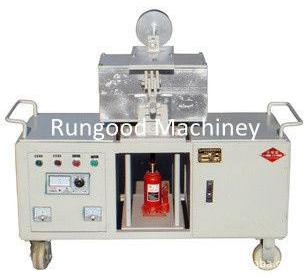

Rubber Cable Vulcanizing Splicing Machine

Located in China, we are the topmost Manufacturer, Supplier and Exporter of Rubber Cable Vulcanizing Splicing Machines in the global markets. The fabrication of these machines is done using premium quality raw material and sophisticated technology. Obtain it from us in different specifications to match your needs. We are known for reasonable pricing and on-time deliveries.
Application : The machine is suitable for rubber cables splicing and repairing. It is wide use in coal mine, iron ore, drilling and well construction cable repair and pressure number is most applicable. The machine adopts high-quality alloy aluminum box and mold, hydraulic clamping system, alarm to indicate temperature, automatic temperature control, high-efficiency, energy saving, easy operating, easy maintenance. After repairing, the cables appear smoother and offer fastness, good sealing.

Main Technical Information :

• Power : 380v tri-phasé 50hz: 220v
• Pressure : 5 tonnes
• Splicing longueur : 600mm
• Heating power : 4kw
• Temperature range : 0-300°c
• Weight : about 160kg
• Cable diameter to splicing : 4-240mm (depended on mould)
• Timer : 0-170 minute
• Working height : 750mm
• Overall size : about 1000x450x1000mm

Structure : The machine is composed of the Bâti, electrical system, hydraulic system, control panel. Hydraulic system is including hydraulic cylinders, pistons, valves and lever. It is automatic control system by electricity. The hydraulic systems complete the mould lifting pressure, to ensure process of heating sticky complement. Bâti are the main components of the machine, build of welding steel with walking mechanism tooling box and counterweight iron to form a complete unified machine. It is easy to move. The electrical and heating systems are assembled, unified control. It is with temperature indicator and a timer. It has lighting and electric bell alarm device, to form a good adjustment control performance.
