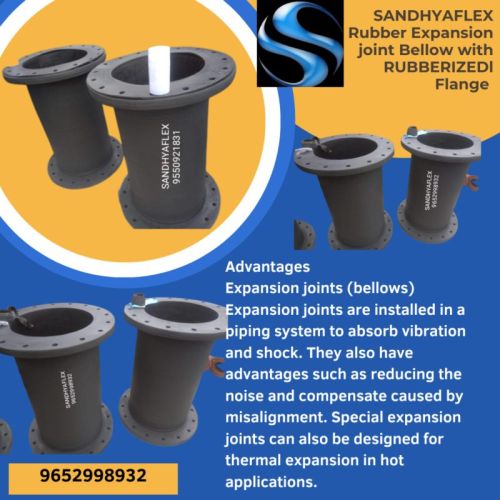

Rubber Expansion Joint Bellow with Rubber Flange

Rubber Expansion Joint Bellow with Rubber Flange

Listing ID #7149587

4,500 - 5,000 / piece

Get Latest Price

Brand NameSNDHYAFLEX
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

A rubber expansion joint with a rubber flange is a type of flexible connector used in piping systems to absorb movement, vibration, and noise, while also accommodating changes in temperature and....

View More Details

Send Enquiry

Product Details

A rubber expansion joint with a rubber flange is a type of flexible connector used in piping systems to absorb movement, vibration, and noise, while also accommodating changes in temperature and pressure. It consists of two main components:

1. **Rubber Expansion Joint:** The main body of the expansion joint is made of rubber, which is a flexible and elastic material. This rubber component is designed to absorb various types of movement in a piping system, including axial compression and extension, lateral deflection, angular rotation, and even some torsional movement. It helps prevent the transfer of stresses and vibrations from one part of the system to another, thereby reducing the risk of damage to pipes, equipment, or structures.

2. **Rubber Flange:** The rubber expansion joint typically has flanges on either end, which are used to connect the expansion joint to the piping system. These flanges are also made of rubber and have bolt holes that align with the bolt holes on the piping system's flanges. By bolting the rubber flanges to the adjacent flanges on the pipes, you create a secure and sealed connection.

The rubber flanges are often reinforced with fabric or metal to provide additional strength and stability. The use of rubber in both the expansion joint and the flanges allows for flexibility and the ability to accommodate movement while maintaining a tight seal, preventing the leakage of fluids and gases from the piping system.

Rubber expansion joints with rubber flanges are commonly used in applications where there is a need for flexibility and vibration isolation, such as in HVAC systems, industrial piping, water treatment plants, and chemical processing plants. They help protect pipes and equipment from the stresses and movements that can occur in these systems, extending the lifespan of the components and reducing maintenance and repair costs.

Additional Information

Payment Terms T/T

Product Images

Company Details

We are pleased to introduce ourselves as Rubber Sheet, Textile Braided hose, Rubber Suction Hose, Elastomeric Bridge Bearing, Rubber Moulded products, Extruded Products and PVC Water Stop, Bridge Expansion Joint. We have leading and reputed consumer as our valued customers. It will be our pleasure If we can be of any service to your good selves and welcome your inquiries for your requirements.
Our service is well established with the, Cement industries, Granites industries, Electric Power Industries, Ready Mix Industries, Construction Company and Civil Construction Works. We go through the test certificate, Physical Properties, Processing condition of the finished goods, grades etc and after looking at the final product we confidently recommended our valued customer to buy the product.
Variety of Hose is:-
Air Hose Corrugated and Plain Top
Water Hose Corrugated and Plain Top
Cement Feeding Hose Corrugated and Plain Top
Oil Suction & Discharge Hose Corrugated and Plain Top
Carbon Free Hose (Cable Coolant Hose) With Asbestos Cover
Carbon Free Hose ( Cable Coolant Hose) Plain Top
Hot Air Suction Hoses used for Kilburn Application
Composite Hose
Carbon Free Hose with Glass Fibber
Chemical Hose
OUR RANGE OF HOSE’S
1. Welding Hose as per IS:447-1988 with ISI Mark
2. Water Hose as per IS:444-1987, type 1 and II
3. Air Master Pneumatic Hoses as per IS:446-1987 type I and II
4. Rock Drill Hose as per IS:446:1987 Type III
5. Hot Water Hose IS:5821-1996
6. Saturated Steam Hose IS:10655-1999
7. Electrically Bonded Road and Rail Tanker Hose as per IS:10733-1983
8. Heavy Duty Oil Suction and Discharge hose/ Cargo Hose as per IS:8189-1976
9. Oil and Solvent Chemical Hose IS”635-1982
10. Chemical Resistance (For Loading and Unloading)
11. Food Grade Hose
12. Cable Coolant/Carbon Free Heat Resistant Hose with Asbestos Cover
13. Sand /Shot /Grit Blasting Hose as per IS:5894-1990
14. Sand & Grovel/Mud and Slurry Hose as per IS:1307-1991 Type I and II
15. Cement Feeding/ Fly Ash Hose as per IS:1307-1991
16. Heavy Duty Air hose for Bulker.
17. Conductive Hose
18. Insulating Hose
19. Water Suction Hose as per IS:2482-1990
20. Heavy Duty water Suction Hose IS:3549-1983 Type I, II and III
21. Kill Burn Hose (100mm ID to 1500mm ID)
22. Duct Hose
23. Bend Hose 90o
24. Bend Hose 45o
25. Bend Hose 135o
26. Cuff Rubber
27. Bend Hose 120o
28. Bend Hose 1500
29. Bend Hose 1800
30. Radiator Hose
OUR OTHER PRODUCT’S IN THE CATEGORY ARE:-
1. Rubber Bellow for Heavy Chute Duct Pipe Line’s
2. Chute Rubber (as per customer’s requirement and Design)
3. Dredge Delivery Rubber Hose
4. Cock Injection Hose
OUR MOULDED PRODUCTS
1. Insulating Rubber Sheet Plain(2mm to 3.5mm thick)
2. Insulating Rubber Sheet Chequired (6mm to 25mm thick)
3. Conductive Rubber sheet (1mm to 25mm thick)
4. Elastomeric Bridge Bearing.
5. Sponge Rubber Sheet
6. Vibration Pad
7. Gate Seal as per IS: 11855
8. Slab Seal
OUR EXTRUDED PRODUCTS
1. Expansion Joint
2. Compressive Seal
3. Beading
4. Sponge Beading
5. And Other Profiles
Automobiles’ Parts
1. Ashok Leyland “L” type Bend Hose
2. Tata Bend Hose
3. Escher Bend Hose
4. DCM Mazda
5. Mahindra and Mahindra
PVC Products
1. PVC Water Stop
And Other Profiles also.
These are our Standard sizes. Apart from these, we also deal various types of customized Hoses from With Fittings as per customer’s requirement.
We shall be, thankful to have your valued enquiries along with the dimension of your hoses to enable us to submit our techno- commercial offer along with design drawing and manufacturing & testing procedure for your kind and favourable consideration please.
Kindly approve “Sandhya Enterprises” Rubber Product and PVC Products for your present project & oblige please.

Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Retailer / Retailer / Distributor / Importer / Trader / Buying House
Number of Employees Below 20
Year of Establishment 2016
