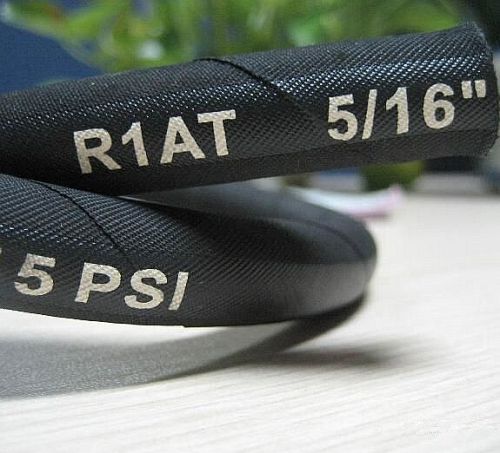

Rubber Hose With ISO Certified

We are offering Factory Manufacture High Quality Low Price Rubber Hose with ISO Certificate
Product Description
SAE 100R1AT rubber hose technical data:
Size I.D O.D W.P B.P Min B.R Weight Length
mm inch Min Max Max Mpa Psi Mpa Psi mm Kgm m
5 316" 4.6 5.4 12.5 25 3625 100 14500 90 0.19 50-100
6.3 14" 6.2 7 14.1 22.5 3260 90 13050 100 0.21 50-100
8 516" 7.7 8.5 15.7 21.5 3120 85 12325 115 0.24 50-100
10 38" 9.3 10.1 18.1 18 2610 72 10440 130 0.33 50-100
12.5 12" 12.3 13.5 21.4 16 2320 64 9280 180 0.41 50-100
16 58" 15.5 16.7 24.5 13 1885 52 7540 200 0.45 50-100
19 34" 18.6 19.8 28.5 10.5 1520 42 6090 240 0.58 50-100
25 1" 25 26.4 36.6 8.8 1280 35 5075 300 0.88 50
31.5 1 14" 31.4 33 44.8 6.3 910 25 3625 420 1.23 20-40
38 1 12" 37.7 39.3 52.1 5 725 20 2900 500 1.51 20-40
51 2" 50.4 52 65.5 4 580 16 2320 630 1.97 20-40
