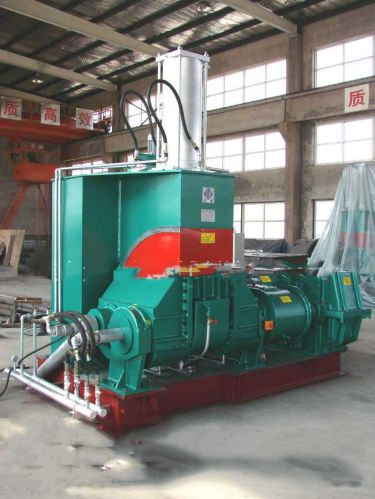

Rubber Kneader Machine, Brand Name : Jinrunqi, Packaging Type : blue

model x(s)n-20×34 x(s)n-35×30 x(s)n-55×30 x(s)n-75×30 x(s)n-110×30 x(s)n-150×30
total volume of mixing chamber(l) 45 75 125 175 250 325
working volume of mixing chamber(l) 20 35 55 75 110 150
driving motor power(kw) 22 55 75 110 185 220
tilting motor power(kw) 1.5 2.2 2.2 3.0 5.5 5.5
tilting angle(°) 140 140 140 140 140 140
rotating speed of the rotor (front /rear)(rpm) 34/28 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5
pressure of compressed air(mpa) 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
capacity of compressed air(m3/min) ≥0.7 ≥0.9 ≥1.0 ≥1.0 ≥1.5 ≥1.5
pressure of cooling water (rubber mixing)(mpa) 0.2~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4
pressure of heating steam (plastics mixing)(mpa) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.4~0.8
overall dimension(mm) l 3100 3200 3300 3760 4075 4200
w 1300 1900 1900 2143 2712 3200
h 2450 2945 2900 3135 3580 4000
weight(ton) 4.5 6.5 7.2 10 14.5 19.5
