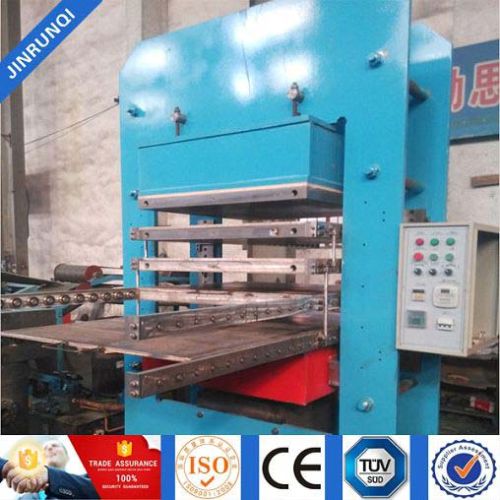

    Rubber Paver Tile Vulcanizing Press

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    The product offered is strictly in compliance with the International Standards and Norms. The company is deeply rooted in Shandong(China) and is acknowledged for its fair pricing policy and....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 9 Years
    • building Nature of Business Supplier
    • Year of Establishment 2007

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    The product offered is strictly in compliance with the International Standards and Norms. The company is deeply rooted in Shandong(China) and is acknowledged for its fair pricing policy and professional attitude.


    Details :

    • Conching : Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4- 6 minutes ( because the adhesive is easy to cure, so stir it when use ).
    • Weighing raw materials : weight the rubber granulates stirred, according to the granulates' thickness  requirement of the tiles .
    • Paving and pressing : Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
    • Vulcanization molding : Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.


    Specifications

    TypeXLB-D550*550*4XLB-D680*810*3
    Total pressure(MN)0.51
    Plate size(mm)550*550*45()Q235)680*810*60
    Plate clearance(mm)150150
    Working layer number43
    Piston stroke(mm)400-
    Motor power(kw)3-
    Overall dimension(L*W*H)2200*900*2200400

    Weight(kg)36003
