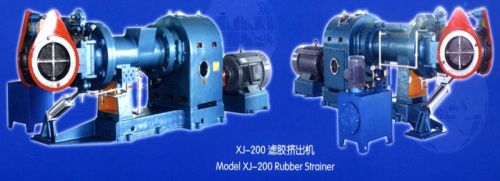

Rubber Strainer

₹ 2.62 Lakh - ₹ 27.15 Lakh / Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are a respectable Manufacturer, Exporter and Supplier of Rubber Strainer from China. We are backed by a team of skilled and adroit professionals having years of experience and in-depth knowledge. Fitted with mechanical cutter that efficiently operates hydraulically, our Strainer is simple and easy to use. The Rubber Strainer is intended to be used for straining impurities out of rubber compound. It can also be used for different applications such as double head, hot-feeding, cold-feed, single head, etc.
Highlights :

The machine body is equipped with a temperature regulation device
The screw and bushes are subjected to nitrogenation treatment to get enough strength and excellent wear and tear resistance
Cold feed rubber strainers of various specifications are supplied for users to select.

Usage : The Machine is Used for Straining Impurities Out of Rubber Compound..

Features :

Rubber strainer can be used in different applications, including single head, double head, hot-feeding, cold-feed. etc.
The machine head is fitted with a mechanical cutter, which operates hydraulically, the operations is simple and easy.
The machine body is equipped with a temperature regulation device. The screw and bushes are subjected to nitrogenation treatment to get enough strength and excellent wear âï¿½ï¿½resistance.
Cold feed rubber strainers of various specifications are supplied for users to select.

Technical Specifications

MODEL	XJL-150A	XJL-200	XJL-250	XJWL-200X18D
DIA. OF SCREW(mm)	150	200	250	200
SCREW SPEED(R/MIN)	41.6	47.4	40	2.6-2.6
MODEL OF MOTORS	Y280M-8	Y316M-8	JS116-6	Z4-280-22
SPEED OF CUTTER (R/MIN)	17	16.8	16	16.8
STEAM PRESSURE(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
STEAM PRESSURE(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
COOLING WATER PRESSURE(Mpa)	0.2-0.3	≥0.2	≥0.2	≥0.2
OVERALL DIMENSION(L×W×H)mm	2873×1220×1377	4030×1250×1690	4030×1250×1690	5740×1280×1823
CAPACITY	400	1600	1600	800-1000
WEIGHT(KG)	6500	9000	9000	9000
