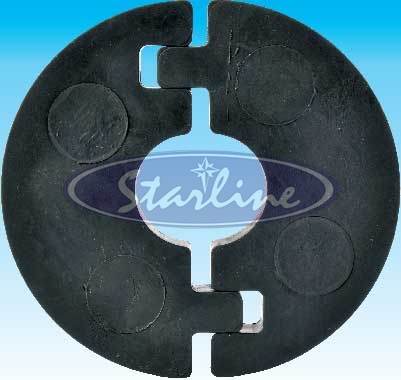

Rubber Support Insert

We provide rubber support insert that is manufactured using compounded rubber with thermal conductivity of 0.16 wm0c and density of 1,300 kgm3. Besides, the buyer has to define pipe od, nominal pipe size as well as thickness of insulation at the time of ordering rubber support insert. acclaimed for

• dimensional accuracy
• individual machine molding
• environment friendly
• extreme rigidity
• resistant to deterioration
• non corrosive nature
• low cost of installation and maintenance
• wider load distribution without additional metal sheets
• time saving with groove and tongue arrangement between rsi inserts
• acoustic barrier is maintained with rubber pipe supports for controlling transmission of high frequencies
• ensuring fast and quality pipe installation
• availability of rubber support inserts for all pipe size and insulation thickness
• widely used for
  • preventing insulation crushing at pipe support points in condenser water, chilled water, and domestic hot cold water installation
  • selecation table
    pipe sizestandard widthsteel ( nominal )copper 9od)---16 mm25 mm½22 mm25 mm¾28 mm25 mm1"35mm25 mm1 ¼42mm25 mm1½---25 mm54mm25 mm2"---25 mm67mm25 mm73mm38 mm2½76mm38 mm80mm38 mm3"---38 mm105mm38 mm108mm38 mm4"---38 mm5"104mm38 mm156mm38 mm159mm38 mm6"---50 mm168mm50 mm8"219mm50 mm10"---50 mm12"---50 mm14"---50 mm16"---75 mm18"---75 mm20"---100 mm24"---100 mm30"---100 mm36"---100 mm40"---
