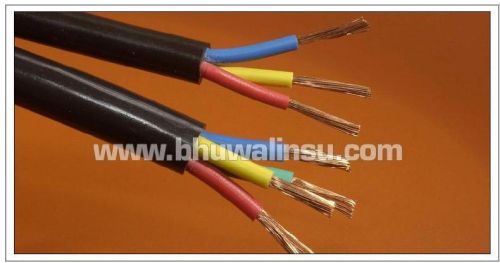

Rubber Welding Cable

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Specializes in the manufacture of Rubber Welding Cable. 70mm2 rubber welding cable battery cable, rubber insulated flexible cable/rubber welding cable, rubber sheath flexible welding cable, Black....

View More Details

Send Enquiry

Company Information

Bhuwal Cables Limited

Girgaon, Mumbai, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specializes in the manufacture of Rubber Welding Cable. 70mm2 rubber welding cable battery cable, rubber insulated flexible cable/rubber welding cable, rubber sheath flexible welding cable, Black Welding Used Flexible Rubber Cable manufacturers in india, Double Rubber Insulated flexible Welding Cable Manufacturer in India. American approved Rubber Welding Cable, CE approved Rubber Welding Cable, VDE approved Rubber Welding Cable and IS 9968 approved Rubber Welding Cable suppliers. Specifications

450/750 PVC insulation CCA welding cable
voltage AC 200V~DC 400V
Standards: IEC60245

Welding Cable

Detailed Product Description

1th. Service Conditions

This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.

2th. Model, Names Main applications and Work In the Temperature

Model	Name	Main applications	Working temperature of core ≤0C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
