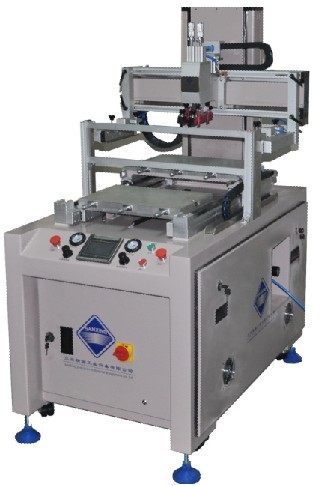

Running Tables Screen Printing Machine - (sp-30f)

scope：
Be used for screen printing of lens,acrylic,pc flat tablet lens;
crstal glass substrate transparent printing;
small electronic products plastic lens and covers printing;
mobile outter cover,mobile presskey
function characteristics：
1.up and down was drived by servo motor and high precision ball screw,leaded by high precision drect line slideway,in order to be convenient to adjust electronic screen distance,move stably withou attack,duplicated printing accuracy is high.
2.adopt cnc motor drive matched direct line slideway during ink scraping/return, in order to make sure that printing is stable and even and course is accurate;
3.the newest printing head,adopts double slideway,is adjusted conveniently,operate accurately and durably
4.screens is clipped pneumaticly,loaded conveniently.two arms can be slided between left and right of crossbeam,aluminum frame size can be changed conveniently;
5.controlled by PLC and human-computer interface,function is versatile,meet cnc,standarization,humanization demand;
6.set up with double emergency switch,breakdown displays automaticly,system reset safely,touch safety pole can be stopped all of a sudden.human body guard is comple,all machine meets european and American safety standard.
7.2 working tables operate between front and behind alternately,two actions,that is, printing, picking and loading material can be done at the same time.Then it makes high efficiency,capacity can be 70% higher that common flat machine.
specification parameters
model SP-30F
platform size（mm） 300*400
max printing size（mm） 200*300
max screen frame size（mm） 500*700
printing thickness（mm） 0-20
max printing speed（p/h） 850
location accuracy（mm） ±0.02
power（v-Hz） 220/50
air comsumption（L/T） 2.5
electricity（kw/h） 2.1
machine size （L*W*H）（mm） 1280*820*1800
machine weight（kg） 450
