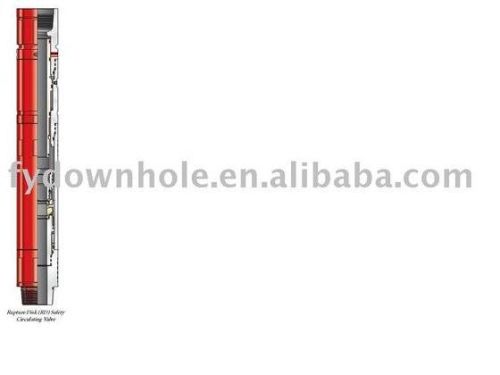

Rupture Disk Safety Circulating Valve

We are offering rupture disk safety circulating valve.
the rupture disk (rd) safety circulating valve functions as both a safety valve and circulating valve. The tool functions as a safety valve when the annulus pressure reaches a predetermined value. At that pressure, the valve isolates the workstring below the tool and establishes communication between the annulus and the workstring above the tool. This tool converts into a circulating valve when the ball valve section is removed.
features and benefits:
the tool is composed of three major sections: the power section consists of a power mandrel case and rupture disk that is available for a wide range of pressure applications. The rupture disk bursts at a predetermined pressure, allowing annulus pressure to be applied to a differential area on the power mandrel. The power mandrel moves down, first pushing the ball valve closed, and then opening a set of
circulating ports.
the circulating section consists of a set of ports that are initially sealed by the power mandrel. When the rupture disk bursts, the power mandrel moves down, exposing the ports that allow communication between the annulus and work string.
the safety valve consists of a ball valve, operating pins, and collect fingers. As the power mandrel moves down, the operating arms close the ball valve. The collect fingers expand, allowing the power mandrel to continue traveling down to open the circulating ports
