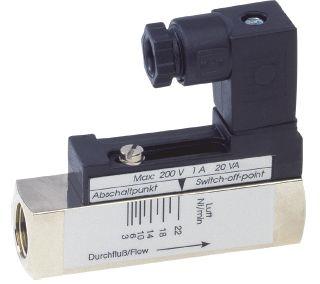

RVM Flow Switch

Get Latest Price

MOQ10 Piece
Process connectionFemale thread G 1/4
Protection class2 - safety insulation
Nominal widthDN 8
MakeHonsberg
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

J V M Tech Engineering

Sanand, Ahmedabad, Gujarat

4.0/5

(1)

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 24CXWPP9877P1ZT

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Media temperature-20..+100°C optionally 160°C
Non-mediumcontact materialsSwitching head PBT, PA, NBR, brass nickelled, stainless steel
Ingress protectionIP 65
Ambient temperature-20..+70°C
MediaWater (gas and aggressive media available on request)
Switching capacityMax. 20 VA
SwitchReed switch
MakeHonsberg
Nominal widthDN 8
Protection class2 - safety insulation
Electrical connectionDIN 43650-C plug
Process connectionFemale thread G 1/4
Tolerance±10 % of full scale value
Switching currentMax. 0,7 A

Details :

Monitoring of small flows
PN 300 / 350

Characteristics : Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.
Handling and operation :

Include straight calming section of 5 x DN in inlet and outlet.
If the media are dirty, install a filter (use magnetic filter for ferritic components).
It must be ensured that the values given for voltage, current, and power are not exceeded.
When switch on, a load must be connected in series.
The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protective circuit.

Options :

Switching values for oil or gas
Special values
Switch contact as changeover

Ordering information :

Specify direction of flow, medium, and switching range.
For gases, state pressure (relative or absolute), temperature and medium (e.g. air) (request switching range).
