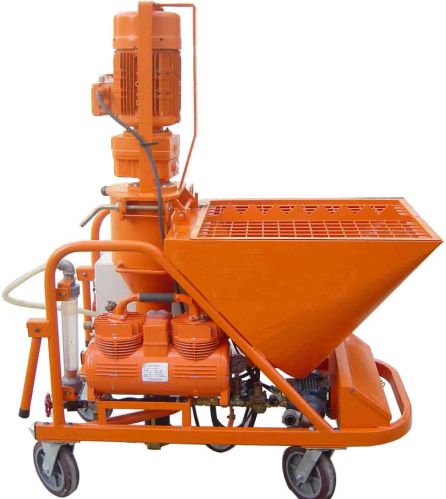

Rx30 Mortar Spray Machine

We offer rx30 mortar spray machine. Designed for the application of any type pumpable dry ready-mixed mortar based on cement, gypsum and insulating mortar. In the european and other developed countries, this type machine has been universally using with its reliability and stability in performance. The machine consists of portable units, permitting easy and comfortable transport due to their small and handy dimensions and low weights.Thanks to its efficiency, silence and technical perfection, RX30 Mortar spray machine is the top-priority machine for dry ready-mixed mortar applications.
Features:
The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator pump
The continuously mixing and pumping machine
Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
The machine always works with efficiency and silence
With air valve remote-control function
The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.
Technical data:
Rated Output 30 L/min
Rated Working Pressure 3 MPa
Total Power 8.5 kW
Main Electric Motor 3Phase,380volt,5.5 kW
Rev.of Rotor 380 RPM
Rated Air Output 250 L/min
Water Pump Rated Output 700 L/h
Max.Conveying Dist. 50 m
Hopper Capacity 120 L
Loading Height 1000 mm
Conveying Hose ID. 25/32 mm
Air Hose ID. 13 mm
Overall Dimension 1240×680×1550 mm
Weight 280 kg
