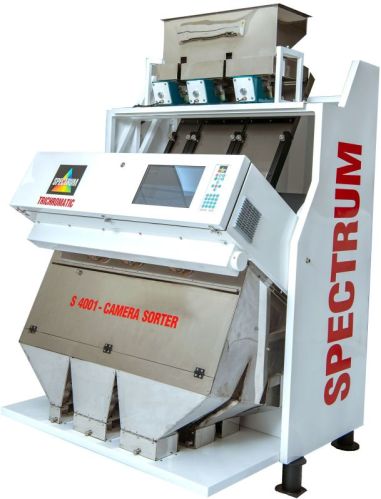

S-4001 Maxima Full Colour Trichromatic RGB CCD Camera Sorter

Details:

• 350 - 4000 Kgs per hour throughput
• Full Colour Trichromatic RGB (Red, Green & Blue), CCD Line Scan cameras.
• High Resolution 16200 pixels tri-linear CCD Camera
• Penta-chromatic LED solid state high intensity long life stable lighting.
• Online live visual display of product being sorted on 15 Colour LED TFT screen.
• Ultra fast long life pneumatic ejectors with response time of 1ms and life up to 5 billion cycles.
• Automatic cleaning of the viewing area by wiper system.
• Fully computer controlled with automatic on-line calibration with self-check procedures.

The SPECTRUM S-4001 MAXIMA series Full Colour Trichromatic, RGB(Red,Green,Blue),CCD Camera based color sorters are the culmination of the efforts of constant R & D in color sorting systems, of over two and half decades at Spectrum Industries.

The S-4001 MAXIMA use advanced 5400 pixel x3, Tri-linear RGB, CCD Line Scan Cameras to scan the product in the Red, Green and Blue region of light in order to identify even subtle defects in product quality.

The S-4001 MAXIMA is available with Penta-chromatic,LED Solid State High Intensity lighting for sharp illumination of the product being sorted. The combination provides high resolution imaging that is displayed on a 15” Colour LED TFT screen, for online viewing of the product. The resultant product data is compared with pre-set parameters,to reject the defective product using ultra-fast, long life custom designed pneumatic ejectors.

The S-4001 MAXIMA has the ability to detect and reject over 200,000 objects/minute with a defect size of even 0.025mm sq.The Penta-chromatic LED solid state lightning provides high intensity stable lightning with extremely long life, giving the machine the ability to sortmultiple products with ease on the same machine,without any requirement whatsoever to change the lightning for sorting multiple products.

The S-4001 MAXIMA is fully computer controlled with Automatic on-line calibration with self-check procedures. Instant change over from one product sort to another is possible, using pre-stored sorting Algorithms.

Features

• Full Colour Trichromatic RGB (Red, Green & Blue), CCD Line Scan cameras.
• High Resolution with 5400 x 3 = 16,200 pixels, tri-linear CCD Cameras.
• Scanning speed of up to 6000 scans per second
• Penta-chromatic LED Solid state high intensity long life foreground and background lightning.
• On-Line live visual display of the product being sorted on 15” Colour LED TFT screen.
• Ultra-fast long life pneumatic ejectors with switching time of <1ms and life of > 5 billion cycles.
• Ejection speed of 500 Cycles/sec.
• On-line re-sorting facility for rejects.
• Automatic cleaning of the viewing area by wiper system.
• Fully computer controlled with Automatic on-line calibration with self-check procedures.
• All contact parts are in stainless steel with anodized feed chutes.
