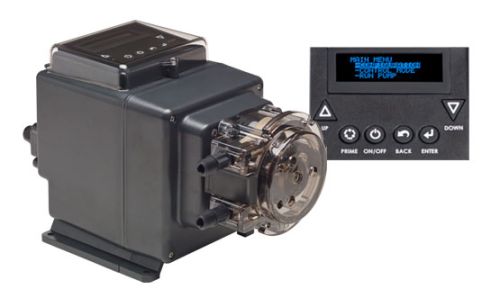

S Series Variable Speed Pump

The S Series Variable Speed Pump offers several modes of operation and performance indicators.
The S Series Variable Speed Pump is an advanced peristaltic metering pump designed to interface with process control systems. Prevent unauthorized access to programmed settings with the password protection. Program the transfer function to activate a relay to start a second S Series as a back up to the primary pump.
The OLED operating display is easy to navigate with intuitive programming. Select from the various modes of operation:
Pump Signal Inputs
– Analog: 4-20mA, 0-10VDC – scalable, invertible
– Digital: Pulse, Hall Effect, PPM Feed Constant Flow, PPM Feed Variable Flow
– Manual: Manual, 7 Day24 Hour Timer, Cycle Timer
Pump Signal Outputs
– Analog: 4-20mA
– Digital: Three Relays
The pump can be programmed to respond based on a selected pump condition such as tube leak, tube change, standby, repeat pulse, run, mode change, low or high signal, low or high flow, drive fault, signal overrun, transfer and off.
The totally enclosed pump is outdoor rated and built to NEMA 4X for demanding applications. Additional agency listings include NSF 61 & 372, cULus indooroutdoor; CE IP65 is also available with selected voltages. The brushless DC motor is equipped with ball bearing support and the switch power mode offers energy efficiency. The splined shaft designed pump head and roller assembly allow smooth installation and replacement. Tube replacement is fast and easy with the patent pending QuickPro® pump head.
