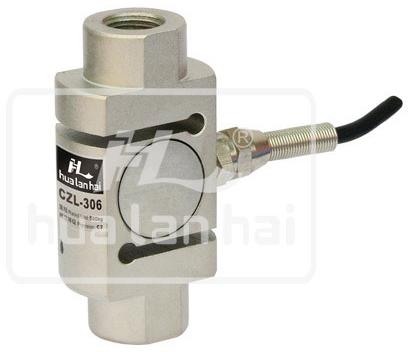

S Style Load Cell

Offering S style Load Cell.
Rated load:500kg / 750kg / 1000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Parameters:
Precison : C2
Temp. effect on span(%F.S/10�): ±0.017
Comprehensive error(%F.S) : ±0.03
Temp. effect on zero(%F.S/10�) : ±0.023
Rated output(mv/v) : 2.0±0.004
Compensated temp. range(� ) : -10�+40
Creep(%F.S/30min) : ±0.03
Use temp. range(� ) : -20�+55
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9�12(DC)
Input resistance(Ω) : 350±5
Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : �5000(100VDC)
Defend grade : IP66
