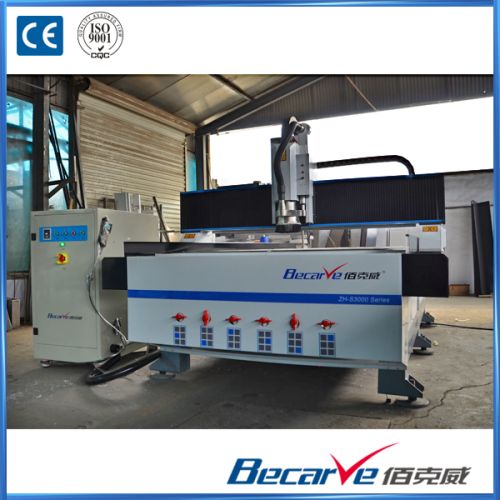

S1000 High Precision CNC Router Machine, Brand Name : BECARVE

MOQ1 Unit
Brand NameBECARVE
CertificationISO9000
ConditionNEW
Spindle Power5.5Kw
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameBECARVE
CertificationISO9000
Availability1800KG
Country of OriginAC380V-50Hz
ConditionNEW
Total Carbohydrate1 year
After-Sales Service Providedall over the world
Spindle Power5.5Kw
Reposition accuracy0.01mm
Dimensions(L*W*H)3070 X 2140 X 1600mm
Spindle speed0-24000r/min
Software operation environmentWindows98/2000/xp/win7/win8
Model NumberZH-S1000
Maximum feed thickness100mm
Resolution0.05mm
CommandG Code*u00*.plt*
Maximum speed of engraving20m/min
Maximum speed of running40m/min
X/Y axis travel1300 X 2500mm
Z axis travel100mm

Machine Features:
1. 5.5 kw power spindle
2. Rack drive, equipped with planetary reducer, transmission speed up to 40mmin
3. Products comply with ISO9000 certification quality requirements
4. Using Taiwan HIWIN guide rail, running smoothly
5. Unique gantry side wall design, dual motor drive,servo motor
6. Equipped with six control vaccum platform
7. Equipped with 7.5 Kw water circulation vacuum pump
8. Guide nut oiling system to extend service life
9. Equipped with genuine Weihong control system NK105, can add the full touch screen touch system
10. Equipped with our patent products professional cooling chiller
