Coated Metal 4g Automatic S275 Cellular SMS M2M RTU Gateway 40 Mm

₹ 89.50 - ₹ 1,342.50 / usd

MOQ5 Piece
FinishingCoated
Automatic GradeAutomatic
MaterialMetal
Frequency4g
Supply TypeManufacturer, Supplier, Distributor, Trader
Preferred Buyer Location China only

Product Details

Temperature PressureMedium Temperature Pressure
Driving ModeManual
Actuation TypeSingle Acting
Operating Temperature65
Frequency4g
End Connectionwireless
Working Pressure65
Current Leakage75
Availability1kg
Ambient Humidity85
Packaging TypeCarton
Shell Wall Thickness95
StructureU Section
Diameter (mm)40 Mm
Overall Length6-10 Inch
Valve Size1inch
Voltage Range24V DC
SpecialitiesHeat Resistance
Diametre (milimetre)100 To 1000 Mm
Number Of FlowerIndustrial Valves
Brand NameParth
MaterialMetal
Certificationce
ConditionNew
FinishingCoated
Automatic GradeAutomatic
Total Carbohydrate1 Year
Country of OriginChina
MediaWater
Mounting TypeVertical
Corrosion ResistanceYes
Packaging Size5 Pieces
Number Of Way2way
ApplicationOil Fitting
NameS275 Kingpigeon

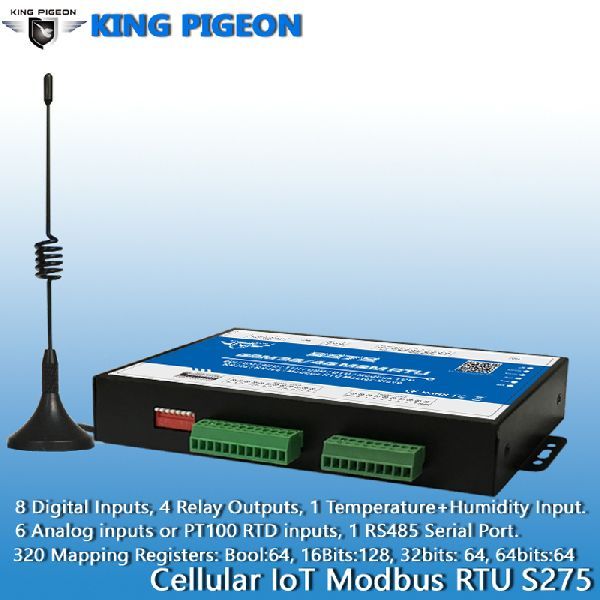

The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port, supports extending 320 I/O tags via Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.

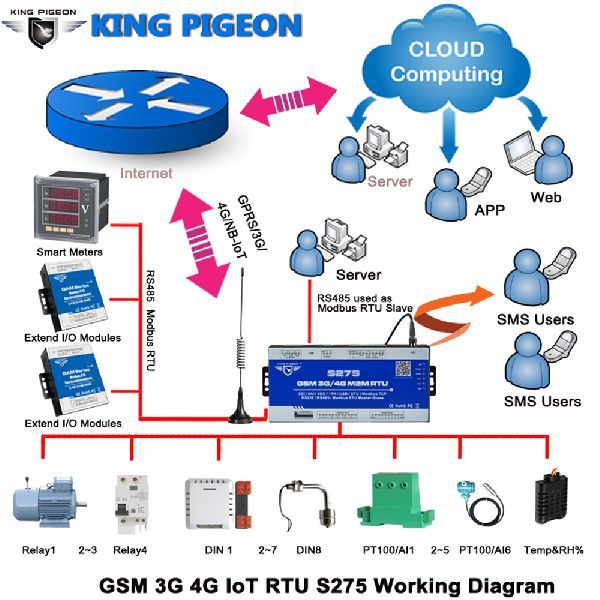

The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.

The Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

The Cellular IoT Modbus RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to save the time of traditional authorized.

The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over GPRS/3G/4G/NB-IoT network and RS485 serial port. Moreover, the Cellular IoT Modbus RTU can be used as Modbus RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value, or transmit data to remote server over GPRS/3G/4G/NB-IOT network.
