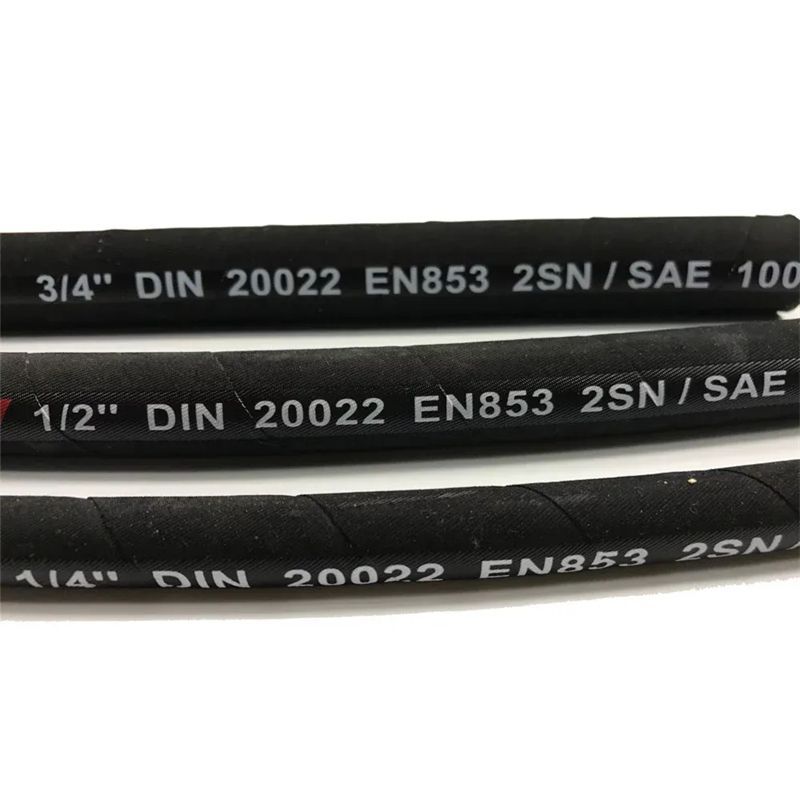

Sae100r2at Hydraulic Rubber Hose, Brand Name : Biaohui

₹ 90.50 - ₹ 2,715 / Meter

MOQ1 Meter
MaterialNitrile Rubber
Brand NameBiaohui
ShapeRound
PressureHigh
UsageIndustrial Use, Automobile Parts, Tractor Use, Fire Fighting
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

Brand NameBiaohui
MaterialNitrile Rubber
ShapeRound
PressureHigh
UsageIndustrial Use, Automobile Parts, Tractor Use, Fire Fighting

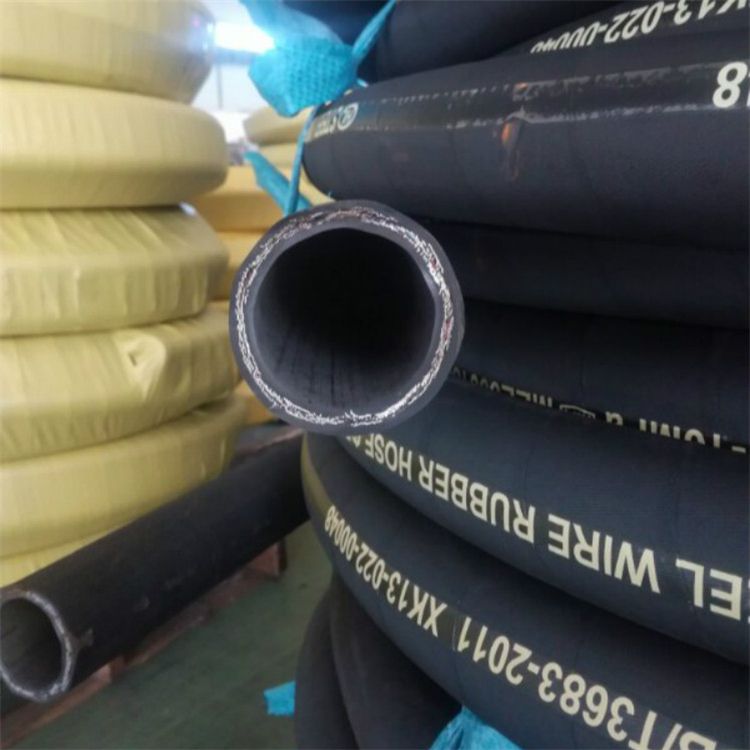

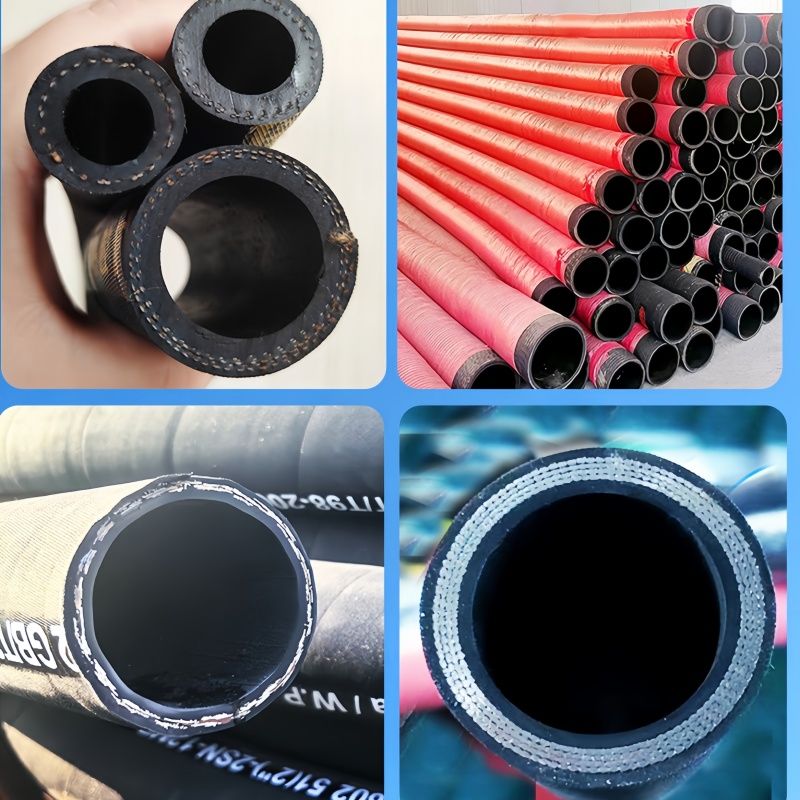

INNER TUBE:oil resistant synthetic nitrile rubber
REINFORCEMENT:two layers of steel wire braided
COVER:oil and weather resistant synthetic rubber
APPLICATION:
High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT performance requirements of EN853 2SN. For high pressure hydraulic systems in industry and agriculture.
SURFACE:wrapped surface,smooth surface
TEMPERATURE RANGE:40ºC (-104 ºF ) to 100ºC(+212 ºF)

SAE 100 R2 AT
Item Code	Metric Size	Inch Size	SAE Dash size	I.D		REINFORCEMENTW.D		O.D	W.P		B.P	Min.bending radius	Weight
	Metric Size	Inch Size	SAE Dash size	(mm)		(mm)		(mm)	W.P		B.P	Min.bending radius	Weight
	mm	Inches	Dash	Min	Max	Min	Max	Max	Mpa	Psi	Mpa	mm	Kg/m
R2-05	5.0	3/16"	03	4.6	5.4	10.6	11.7	14.1	35.0	5250	140.0	90	0.32
R2-06	6.3	1/4"	04	6.2	7.0	12.1	13.3	15.7	35.0	5250	140.0	100	0.36
R2-08	8.0	5/16"	05	7.7	8.5	13.7	14.9	17.3	29.7	4455	119.0	115	0.45
R2-10	10.0	3/8"	06	9.3	10.1	16.1	17.3	19.7	28.0	4200	112.0	125	0.54
R2-13	12.5	1/2"	08	12.3	13.5	19.0	20.6	23.1	24.5	3675	98.0	180	0.68
R2-16	16.0	5/8"	10	15.5	16.7	22.2	23.8	26.3	19.2	2880	77.0	205	0.80
R2-19	19.0	3/4"	12	18.6	19.8	26.2	27.8	30.2	15.7	2355	63.0	240	0.94
R2-25	25.0	1	16	25.0	26.4	34.1	35.7	38.9	14.0	2100	56.0	300	1.35
R2-32	31.5	1.1/4"	20	31.4	33.0	43.2	45.6	49.6	11.3	1695	45.5	420	2.15
R2-38	38.0	1.1/2"	24	37.7	39.3	49.6	52.0	56.0	8.7	1305	43.5	500	2.65
R2-51	51.0	2	30	50.4	52.0	62.3	64.7	68.6	7.8	1170	31.5	630	3.42
EN 853 2SN
Item Code	Metric Size	Inch Size	SAE Dash size	I.D		REINFORCEMENTW.D		O.D	W.P		B.P	Min.bending radius	Weight
	Metric Size	Inch Size	SAE Dash size	(mm)		(mm)		(mm)	W.P		B.P	Min.bending radius	Weight
	mm	Inches	Dash	Min	Max	Min	Max	Max	Mpa	Psi	Mpa	mm	Kg/m
2SN-05	5.0	3/16"	03	4.6	5.4	10.6	11.6	14.1	41.5	6225	165	90	0.32
2SN-06	6.3	1/4"	04	6.2	7.0	12.1	13.3	15.7	40.0	6000	160	100	0.36
2SN-08	8.0	5/16"	05	7.7	8.5	13.7	14.9	17.3	35.0	5250	140	115	0.45
2SN-10	10.0	3/8"	06	9.3	10.1	16.1	17.3	19.7	33.0	4950	132	130	0.54
2SN-13	12.5	1/2"	08	12.3	13.5	19.0	20.6	23.0	27.5	4125	110	180	0.68
2SN-16	16.0	5/8"	10	15.5	16.7	22.2	23.8	26.2	25.0	3750	100	200	0.80
2SN-19	19.0	3/4"	12	18.6	19.8	26.2	27.8	30.1	21.5	3225	85	240	0.94
2SN-25	25.0	1	16	25.0	26.4	34.1	35.7	38.9	16.5	2475	65	300	1.35
2SN-31	31.5	1.1/4"	20	31.4	33.0	43.3	45.6	49.5	12.5	1875	50	420	2.15
2SN-38	38.0	1.1/2"	24	37.7	39.3	49.6	52.0	55.9	9.0	1350	36	500	2.65
2SN-51	51.0	2	30	50.4	52.0	62.3	64.7	68.6	8.0	1200	32	630	3.42
