Various testing equipment such as shot bags / twin tires and impact frame, 227 and 2260 g steel ball and ball drop impact devices, boiling test instruments for laminated glass, flatness measurement instruments for tempered glass, insulating glass dew point meters and head-form.
Shot Bag
1) Weight:45kg±0.1kg 46kg±0.1kg
2) Height: 330mm ± 13mm
3) Max diameter: 250mm
4) Lead sand size: 2.5mm
Pneumatic Tyres Impactor
Pneumatic Tyres Device for Pendulum Test of Glass In Building According to BS EN 12600
Reference standard:
BS EN 12600:2002
Glass in building – Pendulum test – Impact test method and classification for flat glass
MS 1498:2017
Safety glass in building – Specification
Technical Parameters:
Weight 50 kg ± 0.1 kg
Tire pressure: 0.35Mpa ± 0.02Mpa
Type: 3.50-R8 4PR

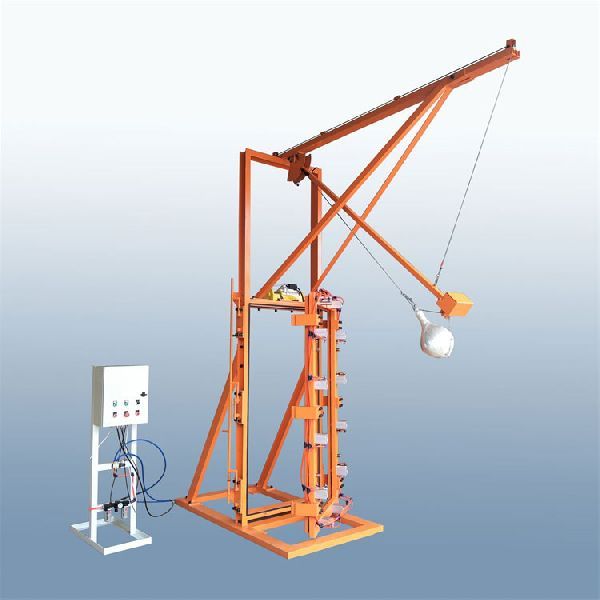

Impact Testing Machine
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50
