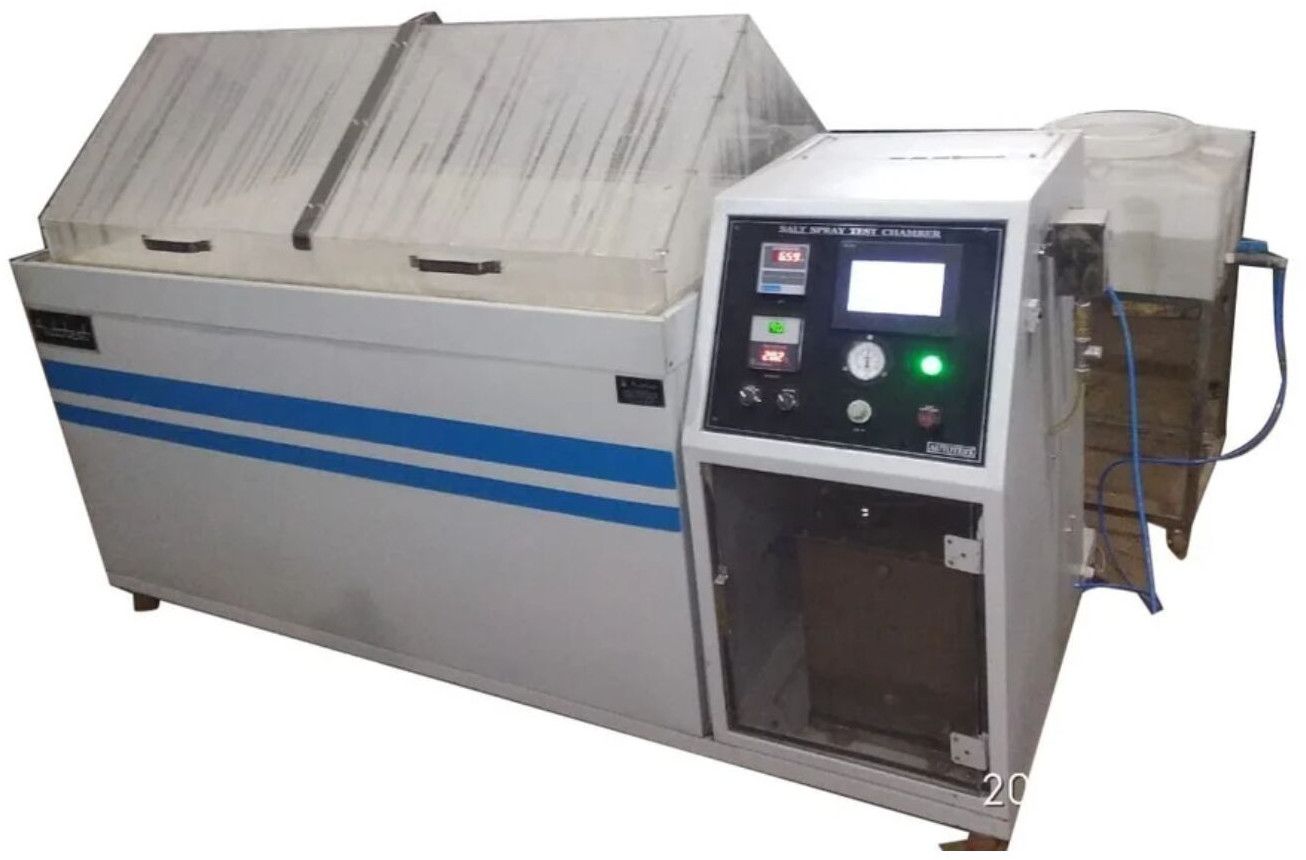

Salt Spray Chambers

Salt Spray Chambers are specialized testing equipment used to simulate and accelerate the corrosive effects of salt-laden environments on metals, coatings, and other materials. Designed with corrosion-resistant bodies made of SS316 stainless steel or fiber-reinforced plastic (FRP), these chambers ensure durability and longevity in harsh laboratory conditions.

The chamber temperature ranges from ambient to 80°C with an accuracy of ±1°C, while the saturated air barrel maintains temperatures between 40°C and 49°C. The salt solution’s pH is controlled between 6.5 and 7.2 to replicate standard corrosive conditions. The test air pressure is maintained between 0.7 and 1.2 kg/cm² to ensure proper atomization of the salt solution.

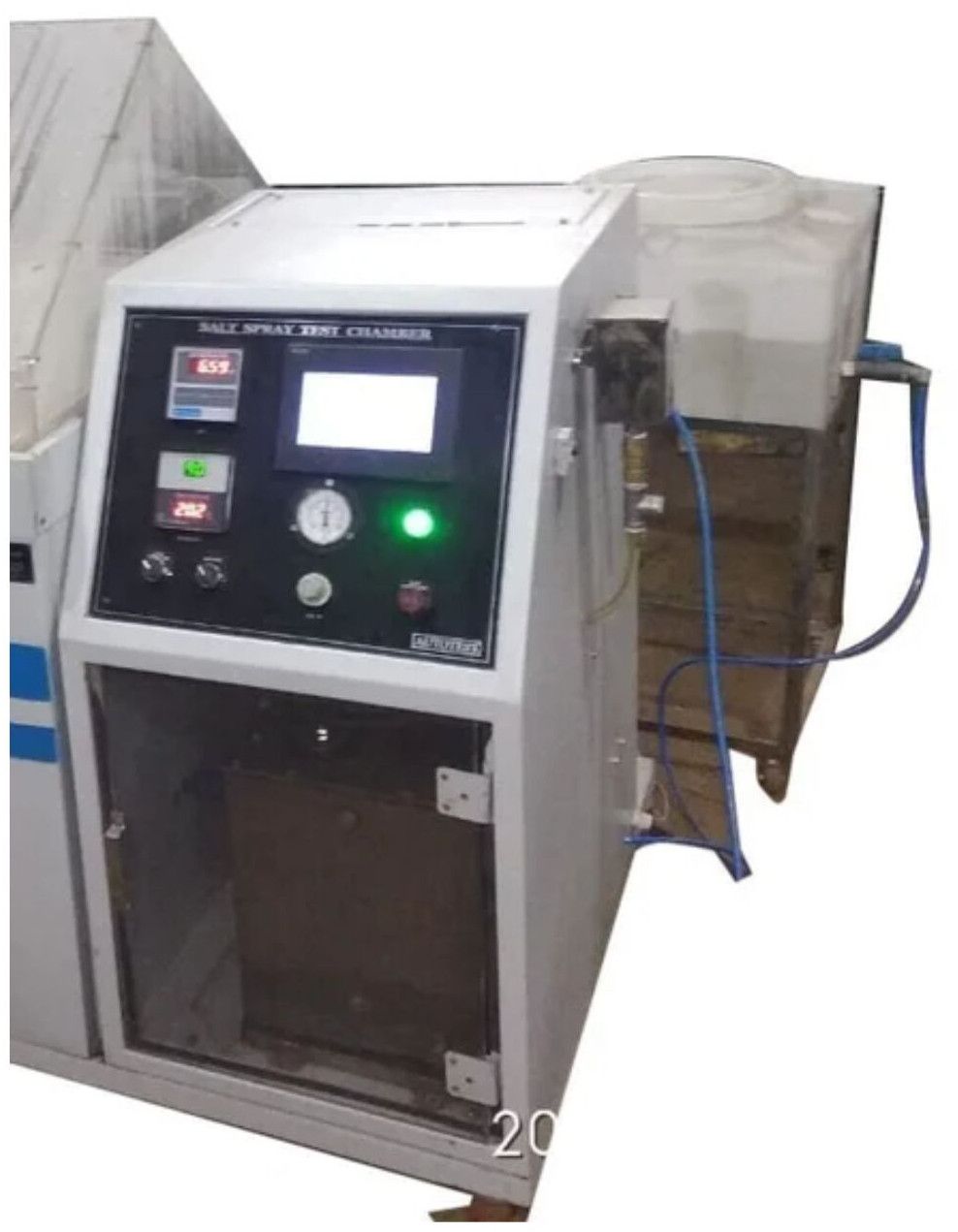

Equipped with a digital display, the chamber allows real-time monitoring of temperature and humidity, and a programmable timer facilitates precise test durations. Specimens are suspended using hanging rods, and safety features such as over-temperature protection ensure safe operation during extended testing cycles.

Key Features

• Corrosion-resistant construction using SS316 or FRP for durability

• Chamber temperature range from ambient to 80°C with ±1°C accuracy

• Saturated air barrel temperature: 40°C–49°C

• Salt solution with pH 6.5–7.2 for standardized testing

• Test air pressure adjustable between 0.7 and 1.2 kg/cm²

• Digital display for real-time monitoring of temperature and humidity

• Programmable timer for precise test durations

• Safety features including over-temperature protection

• Hanging rods for convenient specimen placement

Applications

• Corrosion testing of metals and alloys

• Evaluation of protective coatings, paints, and surface treatments

• Automotive and aerospace component testing

• Quality assurance in manufacturing of fasteners, fittings, and hardware

• R&D laboratories studying material durability in saline environments

• Industrial product development and lifecycle testing
