Sam RFID Reader

We are offering Iso 14443b Sam Rfid Reader.
View Larger Image
Displaying 1/1
Displaying 1/1

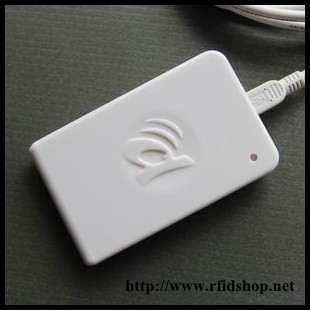

ISO 14443B SAM RFID Reader
item#: D-Think_702B
Retail price: US$56.50
Wholesale Price: US$€
¥
56.50
Start from: 1 Unit(s)
Manufactured by: D-Think Technologies,Inc.
Weight: 0.2 Kg(s)
Qty.Range(unit) Price(per unit) Discount
1-9 US$56.50 No
10-99 US$50.85 10%
100-499 US$48.03 15%
500-999 US$45.20 20%
1,000+ US$42.38 25%
Description:
D-Think 702 Series non-contact IC card reader is the necessary front-end equipment to develop non-contact IC card related products and system integration. It can be a single structure on the whole, can also be embedded as a component into other systems. The most prominent features are high-performance, high stability and high compatibility.
D-Think 702 is a non-contact IC card reader, it’s easy and convenient to operate and reading speed. Its maximum reading distance is up to 8cm.The user-friendly design of DEMO program allows beginners to understand card structure quickly. And user-controlled LED backlight and buzzer reflects the secondary development of the rich features of D-Think products.
D-Think 702 reader with SAM card built-in moduels is suitable for high security industry, such as public transit, subway, intelligent payment system.
In order to facilitate the application developers, we have provided VC, VB, C + + Builder, DELPHI, Power Builder sample procedures, developers can quickly carry out development work from the sample procedures.
Features
Radio Frequency Identity (RFID)
• Comply with ISO 14443A Protocol
• Support Mifare ® 1k S50, Mifare ® 1k S70, Mifare ® Ultralight, Mifare ® Ultralight C
• Support Mifare ® Desfire, Mifare ® Pro
• Support FM11RF08, BL75R06, ISSI4439
• Comply with ISO 14443B Protocol
• Support AT88RF020/SR176/SRIX4K/SLE66CL160S and CPU Cards in line with ISO14443B Protocol
• Support Reading the ID Number of Second-generation ID Card
• Comply with ISO 15693 Protocol
• Support TI Rfid Tag-It HF
• Support NXP I. CODE SLI and other Chips in line with the ISO15693 Protocol
• Support Reading and Writing
• Support the Secondary Development
Physical Interface
• USB 2.0
RFID Antenna
• Integration Design of Reader and Antenna
Frequency
• 13.56Mhz (HF: High Frequency)
SAM
• Built-in two SAM Slots
Operating system
• Microsoft Windows2000/XP/Vista/WIN 7
• Linux
Read / Write Distance
• ISO 14443A: 6CM (Depending on the Antenna Structure and the used Environment)
• ISO 14443B: 4CM (Depending on the Antenna Structure and the used Environment)
• ISO 15693:8 CM (Depending on the Antenna Structure and the used Environment)
Power
• 5 Ma (Typical) Standby
• 90 Ma (Typical) Field Scanning
• 5V (Typical) Operation
Shape
• 100 * 60 * 12 (mm)
• About 100g
• Three-color LED
• Built-in buzzer
Development environment
• C + +, VC, Java, C #, vb, vb.net, Delphi, etc.
Applications
• Application Software Recharge
• Consumer
• E-ticket
• Card
Model Notes
D-Think_702A
D-Think_702D
D-Think_702H
ISO 14443A
√
√
ISO 14443B
√
√
ISO 15693
√
