Samsung

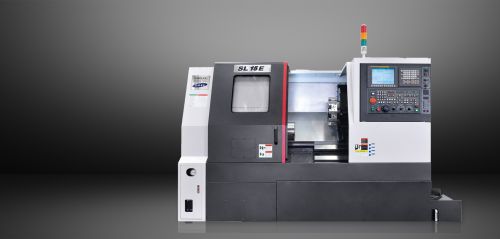

The Samsung SL 15E CNC Lathe uses advanced technology to meet your diversified machining needs. This CNC turning lathe utilizes a high speed turret indexing time and high speed axis traverse time to reduce machine idle time and increase machining productivity. In addition, the Samsung SL 15E’s high precision gearless main spindle coupled with 3-points ball screw supporting design and AC servo motors ensures minimal machine vibration, backlash, and thermal deformation for achieving high precision machining accuracy.
The Samsung SL 15E is a high technology 2 axis CNC lathe. Its rigid 45 degree slant bed and integrated box ways are designed for ultra precision and heavy-duty machining. It swings 17.7 inches over the bed, and 11.8 inches over the cross slide. It has a turning diameter and turning length of 20.5 inches. Rapids on X are 945 inches per minute and 1181 inches per minute on Z. The machine weighs 8,600 lbs. The anandard machine has a Fanuc control.
The machine is fitted with a bi-directional 10 station hydraulic turret utilizing built in turning tool pockets and wedge clamp system. It has a turning and facing tool size of 1 inch and a maximum boring bar size of 2 inches. Turret rotate time is .25 seconds.
A heavy duty tailstock is also standard on the machine. Quill is fully programmable with 2.95” of quill travel and an MT#4 center.
Other standard features include a machine work light, an independent reservoir coolant system, bar feed interface, and an easy access automatic way lubrication system.
Machine options include a side discharge chip conveyor, tool presetter, automatic parts catcher, various sized tool holders, Manual guide i, and an auto operator door.
Major construction highlights include a one piece Meehanite casting with heavily ribbed torque tube construction, which provides excellent vibration damping and thermal displacement. Pre-tensioned and double anchored ball screws provide rigidity and minimal thermal growth. The extra wide hexahedral slide way frame provides maximum cutting support.
