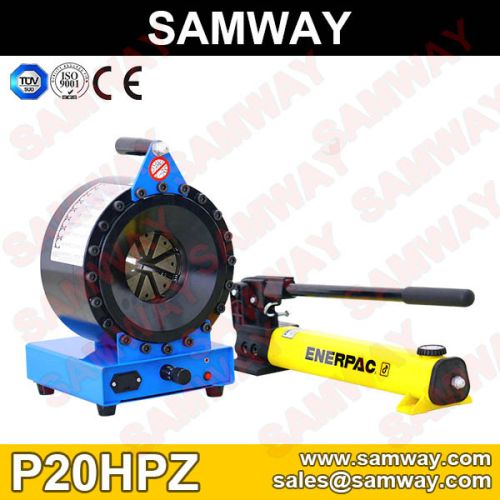

Samway P20HPZ Hydraulic Hose Crimping Machine

Samway P20HPZ Hydraulic Hose Crimping Machine
Feature description�
� Portable 1 12� Crimper
� No electricity required
� Optional Enerpac Hand Pump or Air Pump
� Complete Die Set
Specification�
Main Specification
SAMWAY P20HPZ
Max Hydraulic Hose
1 12� 4 wire
Crimping Range mm
4-65
Die Type
P20
Master Die Length mm
64
Max Opening mm
+20
Hand Pump (Optional)
Hand Pump or Air Pump
Crimping Force KN
2100
Control
Micro Dail
L*W*H mm
200*250*310
Weight KG
45 Standard Die Sets Included:
Die No.
10* 12* 14 16 19 22 26 30 34 39 45 51* 57*
Length
55 55 55 55 55 55 75 75 90 90 90 90 90 * Optional Die Sets Upon Request
