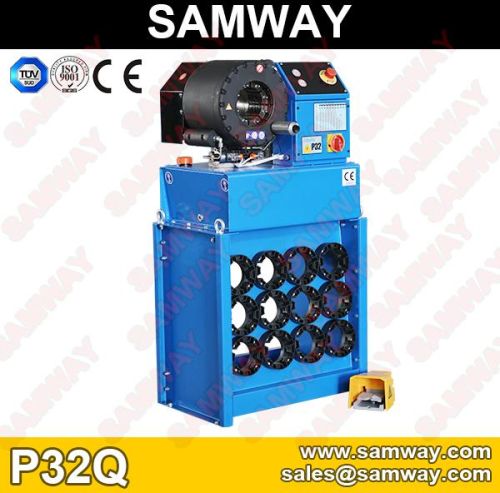

Samway P32Q Crimping Machine, Packaging Type : blue

Samway p32q crimping machine
feature description
full automatic control with foot pedal
quick change tool and die rack
energy saving and safety operation
specification
main specification
samway p32q
max hydraulic hose
2" 4sp
crimping range mm
4-87
die type
32
master die length mm
80
max opening mm
+32
motor kw
4
crimping force kn
2200
crimpings per hour
1200
control
control with advanced programmable chip
foot pedal
included
die rack
included
quick change tool
included
backstop device
optional
control by pressure
optional
noise level dba
65
protection class
ip56
l*w*h mm
680*600*1400
weight kg
300
standard die sets included
die no.
10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
length
55 55 55 55 55 55 75 75 90 90 90 90 90 100 100 100 100
* optional die sets upon request
order no.
220v, 400v, 415v, 440v,480v 3 phase :00001610
110v 60hz single phase :00001611
220v 5060hz single phase :00001612
