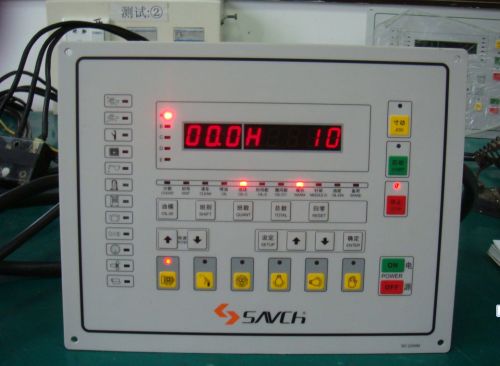

Sanch Sc2200 Circular Knitting Machine Control Panel

We are offering Sanch Sc2200 Circular Knitting Machine Control Panel.
Specifications 1 DSP Core digital control
2 Easy for operation and installation
Feature:
1) Suitable for all kinds of the circular knitting machine.
2) Easy for operation and installation
3) Many kinds of the protection function
4) All kinds of the lights display like Cloth lamp, Spray oil lamp, Yarn break lamp,lack oil fault, Low speed,fast speed,start,Jog,Stop,Safety door. etc.
5) Automatic saving operation data.
Characteristics:
1) Full digital control system with the high-performance DSP CPU as its core processing;
2) There are 3 working models as well as their value setting for the pump operation mode: continuous, interval by the cycle;
3) vailable to set the jog rate, which could be adjusted during running;
4) It may indicate the frequency regulation of the 64 inverter;
5) Available the disable/ enable the operation of setting and adjustment;
6) Make sure that the power supply method of the interver complies with the priciple of make-before-break, ensuring that the non-loaded operation of the contactor and the reliable operation of the inverter;
7) Under the shutdown state, the fan and the pump can conduct the forced operation function;
8) The on-site data storage function at power-down and power-fail;
9) The production and the real-time display under various abnormal situation, that is, it can conduct forced jog function or super-force function under anormal function;
10) The cloth lap counting in working phase, out put satistics of the five shifts of A/B/C/D/E and the gross statistics;
11) The six yarn length counting and six independent step length sitting function;
12) Real-time clock and calendar display function;
13) It can conduct power on self-test, and independent manual detection of input and output signal in shutdown state;
14) Available to inquire the power-on time and shutdown time, and set the time range when the machine enables heating of turbine again after stop;
15) The weaving or cleaning is carries out in a countdown way, which is convenient to examine the remaining weaving turns.
16) The speed of weaving and cleaning is set separately, which makes the operation more flexible.
