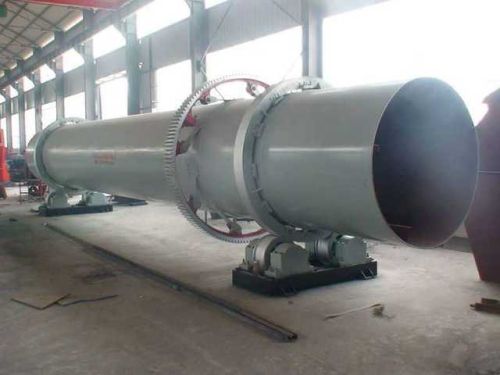

Contact SupplierThe components of sand dryer:
1, cylinder; 2, frontal roll ring; 3, rear roll ring; 4, gear; 5, block roller; 6. drag roll; 7, the small gear; 8,discharging section; 9 ; Lifting board; 10, reducer; 11, motor; 12, air channel; 13, feed chute; 14, furnace and other components, the design according to user needs additional gas furnace, the combustion chamber or supporting elevator, belt conveyor, quantitative feeder, cyclone dust catcher, Fan, etc.
Technical parameter:
Type Rotor diameter(mm) Rotor length (m) Tilt (°) Speed (r/min) Power(kw) Volume(m3)
KHSDΦ0.6*8 Φ600 8 3-5 8 4 2.26
KHSDΦ0.8*10 Φ800 10 3-5 7.2 4 5.02
KHSDΦ1.0*10 Φ1000 10 3-5 6.73 5.5 7.85
KHSDΦ1.2*12 Φ1200 12 3-5 5.8 11 13.31
KHSDΦ1.5*12 Φ1500 12 3-5 4.8 15 21.2
KHSDΦ1.8*14 Φ1800 14 3-5 3.2 30 48.22
KHSDΦ2.2*18 Φ2200 18 3-5 3 37 70.43
KHSDΦ2.4*20 Φ2400 20 3-5 2.83 45 90.43
KHSDΦ2.8*24 Φ2800 24 3-5 2.59 75 147.8
