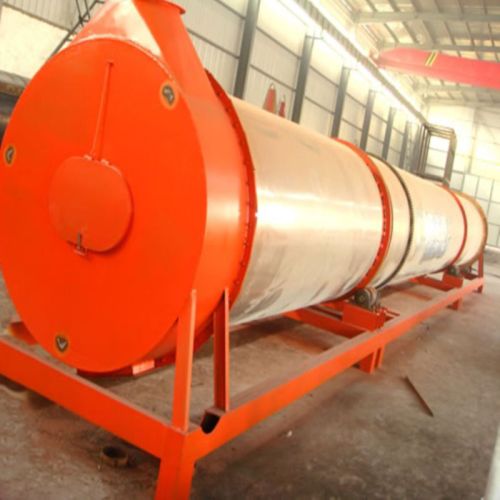

Sand Dryer

We are offering sand dryer.
the hot air dryer is widely used for drying materials with humidity or granulary in industries of mineral dressing , building materials , metallurgy, chemical industry, cement plant etc., such as limestone slag , coal powder, slag, clay stone.
working principals of sand dryer
1.it is composed of rotary cylinder, lifting blade, driving device, supporting device, sealing ring.
2.materials is fed at one end and discharged at the other end. In indirecttype dryer, hot gasses move through the the cylinder in direct contact with the material, either with or against the direction of its flow. The cylinder is equipped with flights , which lifts the material and shower it down through the hot gas stream.
characteristics of sand dryer
(1) dry strength, highly dispersed material in the gas stream, all the particles surface become the effective area.
(2) short drying time
(3) simple structure, small footprint, easy construction and maintenance.
(4) processing capacity, high thermal efficiency. When dry and non-combination of water, the thermal efficiency of up to 60%.
main technical parameters of sand dryer :
model
the diameter
(mm)
the length
(m)
slope
speed
(r/min)
power
(kw)
volume
(m3)
whs0.6×8-12
600
8-12
3-5
8
4
2.26
whs0.8×10-10
800
10-12
3-5
7.2
4
5.02
whs1.0×10-12
1000
10-12
3-5
6.73
5.5
7.85
1.2×12-18
1200
12-18
3-5
5.8
11-15
13.31
whs1.5×12-18
1500
12-18
3-5
4.8
15-22
21.2
whs1.8×12-18
1800
12-18
3-5
3.2
185-30
48.22
whs2.2×12-22
2200
12-22
3-5
3
22-30
70.43
whs2.8×15-24
2800
15-24
3-5
2.59
30-55
147.8
