A05 Sand Pump, Packaging Type : Customized

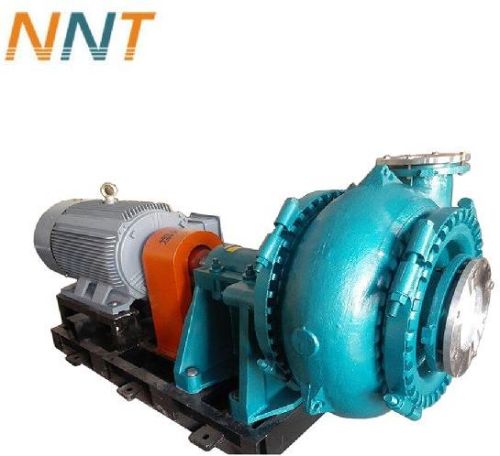

Large sand dredging machine sand slurry pump 10/8F-G for dredger use
Advantage
Sand dredging machine
1. High efficiency
2. Low wear rate
3. With good wear resistance and corrosive resistance
4. ISO9001:2008
Features
Features of Sand dredging machine
1.Casing and spare parts are all made of high chrome alloy (Cr26 material) with anti-wear,anti-abrasive, longer life features.
2.High efficiency, lower price and top quality ,1 year warranty for Sand dredging machine, and 3 months for wet parts.
3.Capacity up to 1300m3/h, head up to 80m.
4.Widely used in sand sucking, gravel dredging and many kinds of mining plant. Such as gold mining, lead mining and so on.
Parameters
Parameters for Sand dredging machine
Pump model Base type Maximum power(KW) Impeller Maximum passage size(mm) Maximum flow(l/s) Maximum head(m)
6/4D-G D 60 DG4137 82 89 52
8/6E-G E 120 EG86137 127 215 50
8/6F-GH F 260 FGH6137 140 280 90
10/8F-G F 260 FG8137 178 275 51
10/8S-GH S 560 FGH8137 180 450 82
12/10G-G G 600 FG10137 220 480 60
12/10G-GH G 600 GGH10137 210 800 80
14/12G-G G 600 GG12137 241 1020 70
16/14G-G G 600 GG14137 254 1020 44
16/14TU-GH TU 1200 HG14137 230 1120 70
18/16TU-G TU 1200 GG16137 254 1200 50
20/18TU-G TU 1200 HG18137 330 1500 46
24/20TU-G TU 1200 HG20137 380 1700 66
28/24TU-G TU 1200 HG24137 380 3800 70
Buying Guides for Sand dredging machine
Please provide following technical data for our reference,then we will recommend proper model:
Which kind of liquid is the wide flow passage Sand dredging machine used for?
Conveying distance (m)
Conveying height (m)
Suction depth(m);sand layer (m)
Pipe size(inner diameter)
Fine sand,middle sand or rough sand?Is there any solids and what is the max solid diameter?
Pictures of your working site
