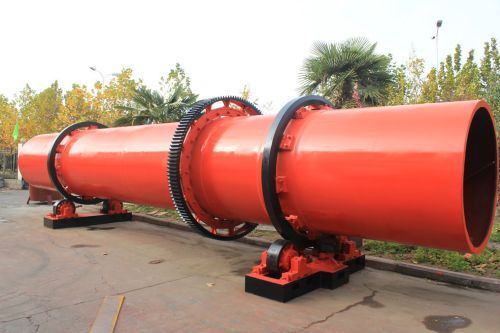

Sand Rotary Dryer, Brand Name : Zhengke

₹ 2.72 Lakh / 60000 60000 Set

MOQ1 Set(s)
Packaging TypeAs customer's demand
Brand NameZhengke
CertificationCE & ISO9001:2008
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of Flowerrotary dryer
Brand NameZhengke
CertificationCE & ISO9001:2008
Country of Origin220V/380V
ConditionNew
Power3-75KW
Packaging TypeAs customer's demand
Model NumberZKRD
Speed (r/min)1.5-8
MotorAC motor
After-sales Service ProvidedEngineers available to service machinery overseas
Heating sourceCoal , gas , electric etc .
Heating mediumHot air
Capacity(t/h)0.5-45t/h
Gradient ( ° )3-5

We offer sand rotary dryer. Production detail
rotary dryer is widely used for drying materials with humidity and granularity such as sand , coal , sludge , coal slurry , brown coal , fly ash , gypsum , clay , kaolin , grain , sawdust , mill scale , iron powder , chicken manure , feed and so on . It mainly consists of revolving tube , roll ring , wheel gear , motor , reduction gears , supporting device etc . Its corollary equipments are conveyor , dust collector , draft fan and so on .
Working principle
wet materials are sent into hopper by belt conveyor or bucket elevator , then enter into a large revolving cylindrical tube . The tube has slope slightly so that the discharge end is lower than the feeding end in order to convey materials through dryer . There are many lifting boards which fixed on the inner wall of the tube . During drying process , materials are lifting up repeatedly and contact with hot air sufficiently . Then the moisture contained in materials is steamed . At the end of , the waste gas is released into atmosphere by draft fan .
