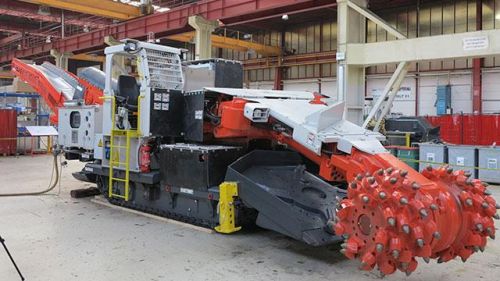

SANDVIK MT360 Borer Miner

Max. tram speed8.8 m/min
Cutting height (min)3000 mm
Weight57000 kg
Dimension (L-W-H)10400 x 3500 x 2600 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Loading capacity300 m3/h
Cutting width300 m3/h
Dimension (L-W-H)10400 x 3500 x 2600 mm
Weight57000 kg
Cutter motor power200 kW
Ground pressure0.15 MPa
Cutting height (min)3000 mm
Installed power342 kW
Cutting height (max)5050 mm
Max. tram speed8.8 m/min

Our Sandvik MT360 tunneling roadheader is an extremely versatile, non-flameproof machine that is designed for use in various applications in the mining and tunneling industry. This heavy duty, electro-hydraulic machine guarantees maximum efficiency and profitability with its high cutting performance and technical availability. With its powerful transversal cutter head, the machine is able to cut rock up to 100 MPa(UCS). Ã¢ï¿½ï¿½The MR360 is available as manual hydraulic controlled machine.Ã¢ï¿½ï¿½
ADVANTAGES
Heavy-duty track system allows for high cutting forces and better productivity
Modular design allows for tailor-made solutions and rapid assembly
Proportional load-sensing hydraulics for optimal energy utilization
Optional pick spraying systems offer dust suppression and ignition prevention
