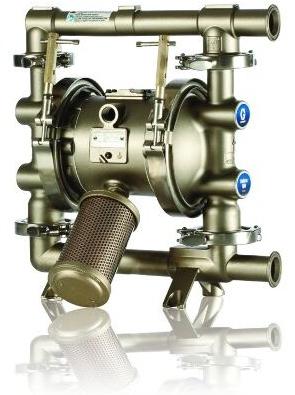

SANIFORCE DOUBLE DIAPHRAGM PUMP

SaniForce 1040 Double Diaphragm Pump: 1 inch air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applications. One of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDMPTFE.
SaniForce 1040 Double Diaphragm Pump
1.5 in (38 mm) Tri-clamp connection
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Flow rates of 40 gpm (151 lpm)
High volume evacuation of liquid concentrates from holding vesselsrepackaging of fluids from original container to smaller receptacles - up to 10,000 cps
Suitable to pump: concentrated fruit juices, sauces, pastes, starches, food-grade oil, jams and jellies
Patented, lube-free air valve
Three-way pilot valve for no-stick operation
Increase durability and reduce repair time with fewer moving parts
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
PTFEEPDM Overmolded Diaphragms
Overmolded diaphragm plate w PTFE on the fluid side & EPDM on the air side- no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
