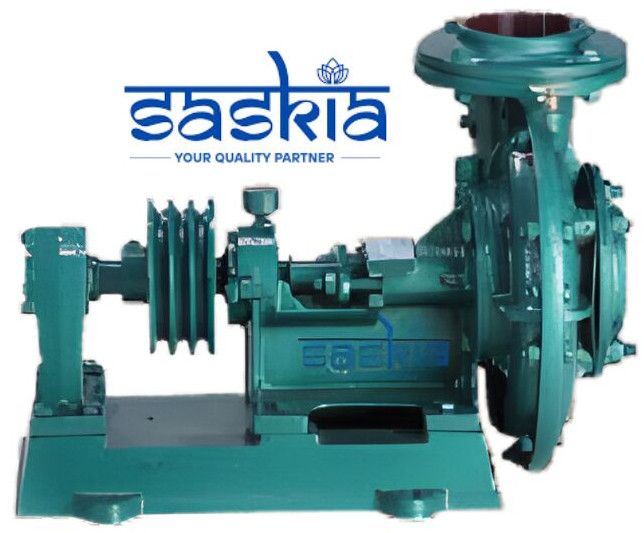

Electric Saskia Centrifugal Pump

SASKIA End‑suction centrifugal pumpfor high‑volume water transfer and utility service in agro‑processing plants, mills, and industrial lines. With 100 × 100 mm suction/delivery, the pump delivers a duty point of 18 m head at 25 LPS with 73% efficiency at 1450 RPM, covering a working head range of 14–20 m; recommended prime mover rating is 8.8 kW, and the CI hydraulic set with balanced impeller ensures smooth, low‑vibration operation.

Key features

• 100 × 100 mm ports; end‑suction configuration; 1450 RPM operation.
• Duty point: 18 m head at 25 LPS; efficiency 73%; head range 14–20 m.
• Recommended prime mover: 8.8 kW (approx. 12 HP) with TEFC motor.
• Cast‑iron casing and volute; dynamically balanced impeller; mechanical seal.
• Suitable for clean water transfer, washdown, cooling, and mill utilities.

Specifications

• Size (Suction × Delivery): 100 mm × 100 mm
• Speed: 1450 RPM
• Head Range: 14–20 m
• Duty Point (Best Efficiency): Head 18 m, Discharge 25 LPS (≈ 1500 LPM)
• Efficiency (BEP): 73%
• Recommended Prime Mover: 8.8 kW (≈ 12 HP), 3‑phase 415 V, 50 Hz
• Casing/Volute: Cast iron | Impeller: CI (balanced) | Shaft: SS
• Seal: Mechanical seal | Bearings: Heavy‑duty, grease‑lubricated
• Liquid: Clean water/light process water, 0–60°C
• Rotation: CW (viewed from motor fan end)
• Country of Origin: India
