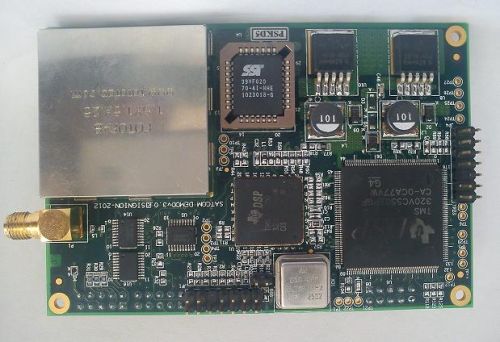

SATCOM MODEM

Modem performanceAs per figure 1
ScramblingCCITT V.35
8-PSK/TCM (IESS-310), R-S(219,201) outer coding , ID=816-QAM (EN 301 210), R-S(204,188) outer coding , ID=12
Optional code typesBPSK and QPSK (IESS-308), Viterbi rate ½, R-S(126,112) outer coding, ID=4
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

8-PSK/TCM (IESS-310), R-S(219,201) outer coding , ID=816-QAM (EN 301 210), R-S(204,188) outer coding , ID=12
Ambiguity encodingBinary/ Quaternery/ 8PSK-TCM/ 16QAM-TCM/R-S (Test mode also supports 16QAM-TCM-manual ambiguity decoding)
Channel symbol rates1024000, 512000, 256000, 128000 (in symbols per second)
IF frequency70 MHz (fixed)
ModulationBPSK, QPSK, 8-PSK and 16-QAM
ScramblingCCITT V.35
Optional code typesBPSK and QPSK (IESS-308), Viterbi rate ½, R-S(126,112) outer coding, ID=4
Power supply+5V DC, 1.1A (Modem) +5V DC, <0.7A (Receive only module)
Data interfaceRS-449
Modem performanceAs per figure 1

SPECIFICATIONS (User Manual)

SYSTEM
Channel symbol rates	1024000, 512000, 256000, 128000 (in symbols per second)
Modulation	BPSK, QPSK, 8-PSK and 16-QAM
Optional code types	BPSK and QPSK (IESS-308), Viterbi rate ½, R-S(126,112) outer coding, ID=4
	8-PSK/TCM (IESS-310), R-S(219,201) outer coding , ID=8
	16-QAM (EN 301 210), R-S(204,188) outer coding , ID=12
Ambiguity encoding	Binary/ Quaternery/ 8PSK-TCM/ 16QAM-TCM/R-S (Test mode also supports 16QAM-TCM-manual ambiguity decoding)
Scrambling	CCITT V.35
Data interface	RS-449
IF frequency	70 MHz (fixed)
Modem performance	As per figure 1
Power supply	+5V DC, 1.1A (Modem) +5V DC,
