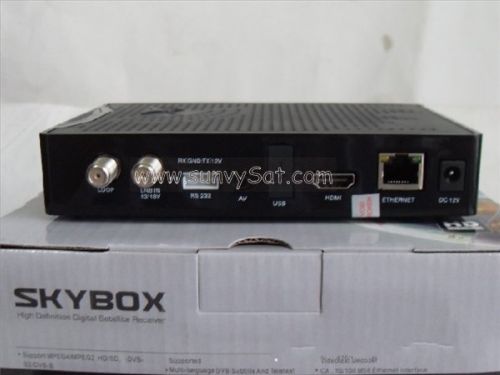

Satellite Receiver Set Top Box

We are offering satellite receiver set top box.hardware spec:
1) fully mpeg-4 h.264/avc. Main profile level 3 & high profile level 4.1 complaint.
2) fully mepg-2 mp@hl & mp@ml;mpeg-1 layer i, ii, iii, dolby audio (ac3) compliant.
3)scpc & mcpc receivable from c/ku band.
4) diseqc1.0/1.1/unicable/1.2/1.3 (usals) supported.
5) nit search, mpeg-5, hdmi1.3 supported.
6) pvr (external usb), epg for 7 days supported.
7) multi-lingual dvb subtitle and teletext supported.
8) teletext and subtitle out through osd.
9) multimedia files playback (by usb).
10) automatic and manual channel scan options.
11) multi-lingual on menu screen supported (english, french, deutsch, spanish and portuguese, etc.)
12) multiple display mode: 1080i/720p/570p/576i/480p
13) mpeg-2/h.264 hardware decoding, videotext decoder.
14) digital audio output: s/pdif by coaxial and optical, ycbcr avaiblable.
15) screen format: 4:3/16:9 auto., 2 scarts (rgb, fbas or s-video).
16) ca (one slot), 10/100 mbit ethernet interface.
17) upgrade software & update channel database through usb2.0 port.
18) directly bouquet-lists.
19) with 4-digit 7-segment led display
board configuration 396mhz mips cpu
128mb ddr400 ram
memory clock 198mhz
2mb serial flash
single tuner
dvb-s2 demodulator
power supply input 100v-240v 50/60hz
power consumption 30w max/1w standby (it's optional by customer’s board)
rs232 for fw upgrading
standard receiver standard dvb-s2 standard (dtsi en 302 307)
input frequency range 950mhz~2150mhz
input signal level -25dbm ~ -65dbm
demodulation qpsk, 8psk, 16apsk
transport stream mpeg-2 iso/iec 13818 transport stream specification
mpeg profile level mpeg-2 sd, mpeg-2 hd, h.264/avc sd, h.264/avc hd
lnb power & polarisation vertical +13.5v, horizontal 18v, current: max 500ma,
multi satellite receiving 22k switcher, diseqc1.0, diseqc1.1, unicable, diseqc1.2, usal
conditional access system scart with cvbs
a/v output ports rca with cvbs, hdmi(hdcp), left/right analog audio output(rca), digital audio output(spdif with coaxial or fiber)
aspect ratio auto, 16:9 pillar box, 4:3 pan & scan, 4:3 letter box.
audio decoding mpeg1 layer i, mpeg1 layer ii, mpeg 1 layer iii, mpeg2, ac3.
audio mode stereo/mono/left/right
dvr supporting dvr with usb hdd, time shifting with usb hdd
usb2.0 high speed host 1usb2.0 port, usb media player to playback the media in usb flash disk or usb hdd or usb card reader with memory card or fw upgrading.
file system fat12, fat16, fat32, ntfs (only support first partition)
media supporting jpg, bmp, mp3, wma
ethernet interface 10/100mbit
storage temperature 0oc to +50oc
accessory:
1x original skybox s12 unit (cccam, newcam supported)
1x ac adapter
1x remote control
1x av cable
1x user manual
