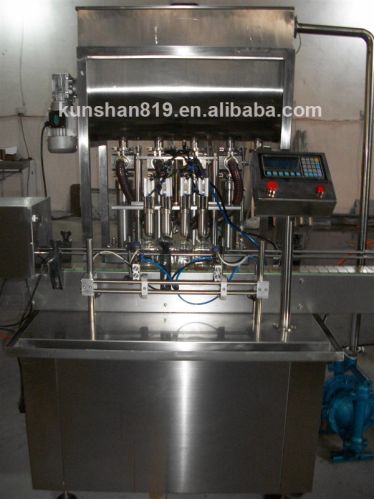

Contact SupplierWe are offering jam paste sauce filling machine(shrimp, bean, tomato ,chili sauce).
Description
this jam paste sauce filling machine is suitable for jam paste sauce with particle. Especially for chili sauce, peanut sauce, sauce, small shrimp sauce, bean paste, roe sauce. It is widely used in paste and sauce of food filling.
main characters
1.this machine is controlled by plc and photoelectric control system
2.it has two model, one is single line which has 2-10filling nozzles. The other is double lines which has 12-20 filling nozzles.
3.it has the advantage of no bottle no filling.
4.it is made of304 stainless steel for parts contacting with filling material.
main parameter
filing volume 50-1000ml
filling speed 500-6000 bottle/h
gas pressure 0.4-0.6mpa
voltage 220v/50hz(customized)
power 1.2-2.0kw(customized)
overall dimension 2000*1300*1900mm
weight 320kg
