Saw Blade Sharpening Machine

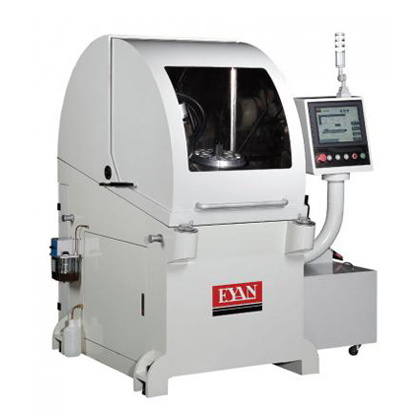

Cnc saw blade sharpening machine (ema-500 4a)
ema series saw blade sharpening machines are cnc sawblade sharpening machines with four axes servo control.
Fully automatic operations for sawblade outer diameter, number of teeth, sharpening amounts,cutting angles, back clearance angles, and up-down chamfer. Humanized two handwheels make re-sharpen old teeth easy to operate.
The elegant, fully-enclosed splash guard is standard equipment.
The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment.
The new designed and special window provides widen vision and easy to see the grinded object. It is easy to open the guard and convenient to change the saw blade.
The newly designed touch screen with patented graphical display which makes no more language barriers.
Any language speakers can learn quickly. Add f & eco teeth type for friction saw blade. Ema models are the best choice for your working requirement.
Specification table:
grinding range
ø95-ø500 mm(optional ø35-ø120 mm)
(35- 120選配>
chamfering range 160 - 500 mm
number of teeth 10-998 teeth
sawblade thickness max.8mm
cutting angle 0° ~ 30°
grinding speed 1-60 teeth min
wheel diameter ø200mm
wheel bore ø32mm
wheel thickness max. 8 mm
wheel motor 4.0kw
wheel speed 2500-6000 rpm
x-axis moto ac servomotor
z-axis motor ac servomotor
b-axis motor ac servomotor
y-axis motor ac servomotor
coolant pump motor 1.6 kw
oil mist recycle device 0.55 kw
magnetic filler 25w
power require 8.4 kw
net weight 835 kg
packing gross weight 1325 kg
packing size 188 x 183 x 201 cm
