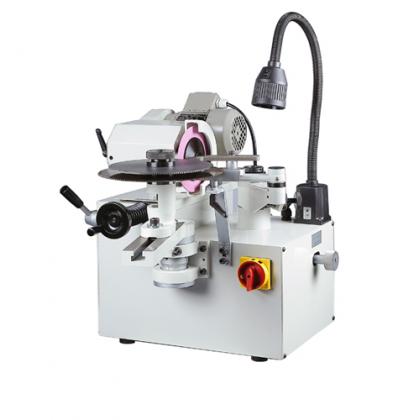

Saw Blade Sharpening Machine (S300)

Saw blade sharpening machine (s300)
superior innovation and brand new design
• a new generation design based on years practical experience and therefore create one profes-sional class friction saw blade sharpening machine.
• the patented vertical grinding direction allows you to operate it easy.
• brand new deign: the vertical type friction saw blade sharpening machine is made with the thinking of operator as top priority. All adjustment levers have been property arranged, which allows operator to adjust rather easily cutting angle, back dearance angle, teeth depth and pitch of saw blade. Therefore, grinding sharp saw blade became quick and precise.
Patented saw blade thickness adjustment
• saw blade thickness is clamped by two synchronic movement mechanisms at the same time .
It can help the saw blade in the center position. Therefore, no need to adjust manually the thickness of saw blade. Besides, as saw blade is clamped well , the grinding noise can be lowered.
Manual speed variation
• the machine equipped with inverter which can control the speed of grinding.
• the grinding speed can be adjusted with the change of teeth pitch.
Ooth profile cam
• industrial class specialized tooth-profile cam was designed by high accurate calculation & simulation computer system. This makes your saw blade grinding done even more simply, quickly,and accurately.
• grinding wheel head can swing up and down. Chamfer can be done without any need to changegrinding wheel then.
• carbide tungsten is welded onto the end part of pushing jaw, which can reduce the wearing of feeding jaw to minimal possible extent and can reach accurate feeding.
• all cast iron of this machine utilizes nodular cast iron (fcd-45) . And they have been temper-treated to ensure the accuracy and enhance wear resistance.
