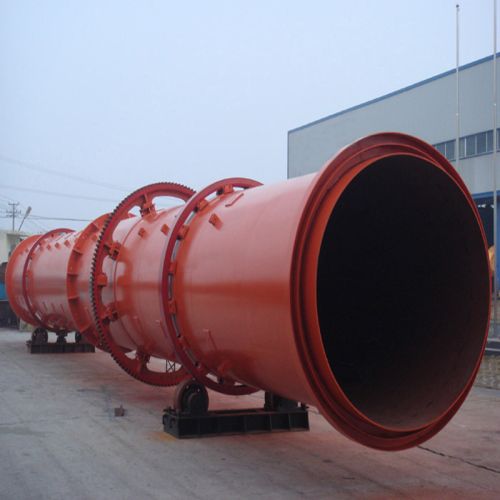

Sawdust Drying Machine

We are offering sawdust drying machine.
sawdust drying machine is used for disposing a wide variety of materials.it enjoys features of high operation flexibility, good adaptability, large treatment volume.
construction of sawdust drying machine
entrance
inner plate
feeder
motor
supporter and draft fan
operation principle of sawdust drying machine
1. Wet materials are sent into silo by belt and bucket conveyor,
2. the material pass through feeding tube into the feed end. The gradient of feeding tube must be greater than the natural angle of materials, so that material can enter into desiccator.
3.the desiccatorsã¢ï¿½ï¿½ cylinder is an oblique rotating drum. Heat-carrier that enters into the dryer from the low-end can form reflux with the material added from the upper end.
4.with the rotating of cylinder, materials are carried to the bottom end by gravity.
5.wet materials obtain heat input of heat carrier to be dried.
process flow of sawdust drying machine
technology parameter of sawdust drying machine
model (m)
gradient( ã�â°)
rotation speed (r/min)
intake temperature
power (kw)
capacity (t/h)
weight (t)
0.6�6
3-5
3-8
700
3
1.5
2.9
0.8�8
3-5
3-8
700
4
2.0
3.5
0.8�10
3-5
3-8
700
4
2.5
4.5
1�10
3-5
3-8
700
5.5
3.5
5.6
1.2�10
3-5
3-8
700
7.5
5
14.5
1.2�12
3-5
3-8
700
11
6
14.8
1.5�12
3-5
2-6
800
15
9
17.8
1.8�12
3-5
2-6
800
18
12
25
2.2�12
3-5
1.5-6
800
18.5
15
33
2.2�14
3-5
1.5-6
800
20
15
41
2.2�18
3-5
1.5-6
800
22
18
53.8
2.2�20
3-5
1.5-6
800
30
20
56
