Sbas Signal Generator, Condition : Refurbished

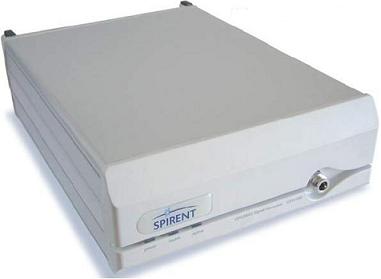

Spirent gss4100 gpssbas signal generator
the gss4100 gpssbas simulator is a complete, low-cost single-channel rf generator for testing satellite navigation equipment, especially in a manufacturing environment, in the laboratory or in the field.
the gss4100 generates either a gps l1 ca code signal or a space based augmentation system (sbas) signal (waasegnosmsas).
standard ieee-488 (gpib) and usb interfaces provide the mechanism for integrating the gss4100 into a user s test environment. The gss4100 also supports synchronization to other systems via its 1pps trigger and frequency standard inputs and its 1pps output.
control is provided over all aspects of the signal generated, including prn, power level, doppler, time of the simulation and signalmessage content. This capability is accessed either in a stand-alone interactive mode, using the supplied simchan software for microsoft windows via usb, or in a fully integrated ate mode via the documented gpib control interface.
highlights
* supports both gps and sbas signals in a single package
* full control over signal content and dynamics
* integrated ate and stand-alone instrument modes
* fully user-definable data messages using simchan software
* stable and accurate all-digital fpga architecture
* industry-standard gpib (compatible with str4775 product)
* low cost
* rack mount kit available
