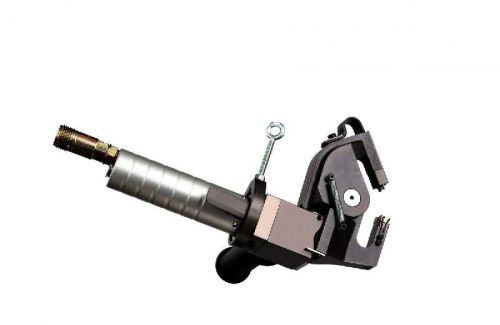

SC 0404IP For Ducting Application, Certification : ISO 9001:2008

We are offering SC 0404IP  For Ducting Application. High quality joining without fasteners.

Clinching is a simple and cost-effective methods for sheet material assembly. It does not require any rivets or screws or other separate fasteners. It does not require any complex systems for high power and cooling which are typical for spot welding installations. The reason is that clinching equipment generally is driven by simple compressed air or from the mains.
Clinching generates a rivet-like joint from the sheets to be assembled through plastic cold flow in a punching and squeezing sequence.

• Simple and reliable non-destructive testing of the joint quality at any point in time

• No need for rivets or screws or other added consumables. No need for tracking the individual batches of fasteners as often prescribed by ISO 9000 or building code requirements. These factors alone often represent savings enabling the amortization of a clinching installation over a few months

• Sorting, orienting and feeding devices for the fasteners can be avoided. No need for costly strip-mounted or magazined fasteners. Such devices are notorious sources of problems, which means that the clinching technique gives simpler and more reliable installations. This has proven to be of vital importance particularly in the automotive, the appliances and other high production rate sectors such as industrial paneling shops

• Short assembly cycles, typically 0.6-1.2 seconds. Compared to riveting or screwing, which may take 5-10 seconds per cycle, this represents even greater savings in the cost of manpower than the cost of the rivet or the screw itself in hand-held or semi-automated situations

Possibility of assembling pre-painted, enameled , galvanized or heat

• sensitive materials without complicated preparation and without post-work touch-up tasks

• Superior fatigue strength and corrosion resistance over spot welded joints
