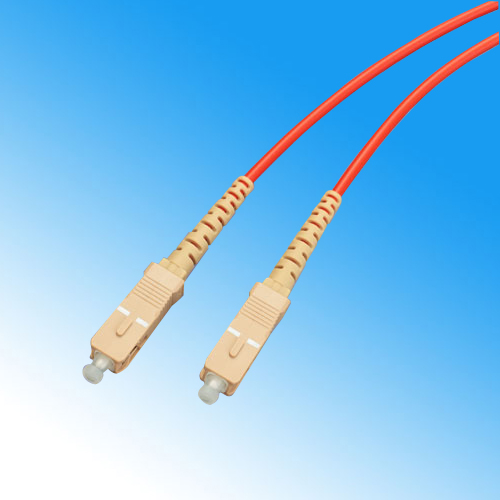

Sc Fiber Jumper

We offer sc fiber patch cord.
Applications:
data transfers
telecommunication networks
testing equipment
broadband networks
catv
features:
high return loss
low insertion loss
high reliability and stability
pc, upc and apc grinding
technical parameters:
insertion loss:
single-mode:
pc: ≤ 0.2db
apc: ≤ 0.3db
multi-mode:
pc: ≤ 0.3db
return loss:
single-mode:
pc: ≥ 50db
apc: ≥ 50db
multi-mode:
pc: ≥ 45db
operating temperature: -40 to +75 degrees
wavelength: 1,310 and 1,550nm
mating cycles: ≥ 1,000 times
ordering information:
diameter of optical fiber cable: 0.9/2.0/3.0mm
fiber type: single-mode (9/125um) and multi-mode (50/125 and 62.5/125um)
number of fiber cores: 1, 2, 4, 6 and 12
