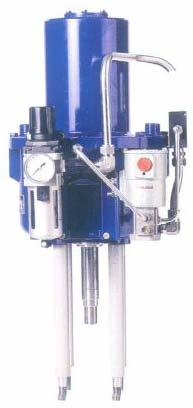

Contact SupplierThe SC/V Series General Purpose Actuator comes with a wide combination of corrosion resistant springs and it is meant for several applications wherein safety is the priority. As an Importer and Supplier of SC/V Series General Purpose Actuator, the company offers a product that can drive the valve to a defined position, which may be closed or open. The SC/V Series General Purpose Actuators work in air supply failures as well owing to the air-lock system or mechanical springs.
Details
Cylinder | aluminium alloy |
---|---|
Cover | carbon steel |
Piston | aluminium alloy |
Shaft | stainless steel |
Springs | alloy steel |
Thrust | from 880 to 4.000 daN (referred to nominal thrust; depending on selected spring rate and pre-compression, |
Standard Sizes |
150, 200, 250, 320 mm |
Stroke | 40 to 150 mm |
Operating Temperature | -26 to +80oC (-15 to + 176°F) (lower or higher temperature available |
Supply Pressure | max. 1.000 kPa |
Supply Media | dry instrument air or clean gases |
Standard Connections | 1/4" NPT F (larger connections availabl on request) |
