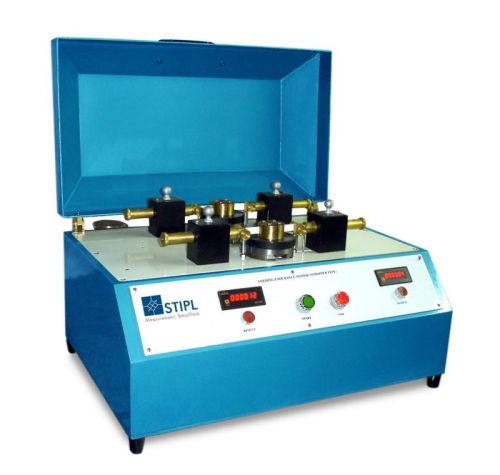

Schopper Type Paper Folding Endurance Tester, Power Source : Electrical

Definition : In paper testing, folding endurance is defined as the logarithm (to the base of ten) of the number of double folds that are required to make a test piece break under standardized conditions: F = log10 d, where F is the folding endurance and d the number of double folds. Folding endurance is especially applicable for papers used for maps, bank notes, archival documents, etc.

Standardization : ISO 5626 , TAPPI 423 , ISO 5626

Device Description : the device measures the number of folds until the sample breaks . The tests require that two samples be tested simultaneously. This is a standard device designed for security papers. It has automatic stop function after sample break. Standard version for paper up to 0.25 mm thickness , alternatively available for board . Measurement and display of the folding head temperature optionally available.

Test Description : two samples are clamped in the folding heads for a simultaneous test . the spring supported samples support are pulled apart, so that samples are clamped at specified force , after pushing the start button the folding knives begin to guide the sample around the sapphire supported folding rolls , that way samples are folded at both sides at a radius of about 0.25mm. if one sample breaks the folding of second sample continues , until it breaks so . the movement of the folding heads stop after test termination , so that samples can be removed the device records and displays number of folds until sample breaks.
