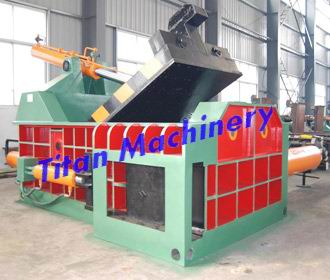

Scrap Metal Baler, Brand Name : Titan, Quality : ISO CE

We offer scrap metal baler.
Applications
y81 series of hydraulic baler are applicable in steel plants,recycling companies,ferrous & nonferrous smelting industry to press metal scraps (steel, copper,aluminum,stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation,to increase speed of furnace charging.
Features
1>hydraulic drive,manual valve control or plc control.
2>bale-discharging:"turn-out","push-out","forward-out".
3>no footing bolts needed in installation; diesel engine can be equipped for power.
4>baling force 10 grades from 63 to 400 tons; productivity from 4 to 40 tons per shift(8 hours)
5>press box size, bale size & bale shape can be customized.
Technical specifications of tcm-m3150
hydraulic power 315ton
main machine size (l×w×h) 5050*3950*3350mm
power 45*2kw60*2hp 4
press box size(l×w×h) 2000×1750×900mm
bale size(l×w×h) 500*500mm
bale weight 200-250kg
control system manualplc
capacity 5000-8000kghour
shipping weight approx.40tons
loading (standard containers) 1×40'gp
